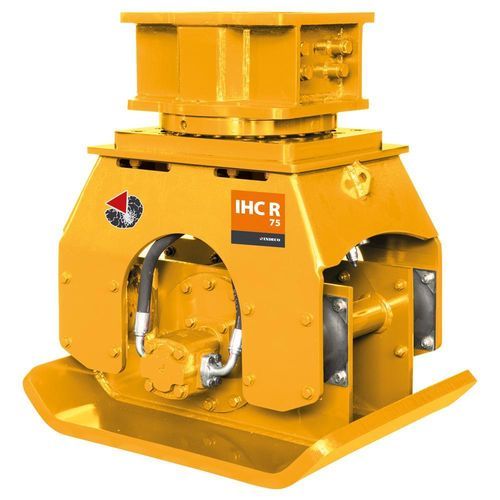

Power vibratory plate IHC R 75

for excavatorscompacting

Product

• Category: COMPACTORS
• Product: IHC R 75
• Series: IHC R series

Technical specifications (summary)
Excavator weight: 7 ÷ 16 ton
Equipment weight*: 670 Kg
Height: 93 cm
Baseplate size: 64 x 87 cm
Centrifugal force: 4000 Kg – 39 KN
Compacting force (Min - Med - Max): 0,7 - 0,9 - 1,1 Kg/cm²; 6,9 - 8,8 - 10,8 N/cm²
Frequency (Min - Med - Max): 1600 - 1850 - 2100 rpm; 27 - 31 - 35 hz
Oil flow to motor: 55 ÷ 75 l/min
Maximum working pressure adjusted to the excavator: 200 bar
Maximum backpressure: 21 bar
Oil delivery for rotation: 10 l/min
Pressure regulated for rotation: 90 bar
Compatibility of attachment plate with mounting bracket: HP 900

Type of carrier

• Compact excavator
• Backhoe loader
• Wheeled excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Features / Technical specifications

• Excavator weight: 7 ÷ 16 ton
• Equipment weight*: 670 Kg
• Height: 93 cm
• Baseplate size: 64 x 87 cm
• Centrifugal force: 4000 Kg – 39 KN
• Compacting force (Min - Med - Max): 0,7 - 0,9 - 1,1 Kg/cm² (6,9 - 8,8 - 10,8 N/cm²)
• Frequency (Min - Med - Max): 1600 - 1850 - 2100 rpm (27 - 31 - 35 Hz)
• Oil flow to motor: 55 ÷ 75 l/min
• Maximum working pressure (adjusted to the excavator): 200 bar
• Maximum backpressure: 21 bar
• Oil delivery for rotation: 10 l/min
• Pressure regulated for rotation: 90 bar
• Compatibility of attachment plate with mounting bracket: HP 900
• Type of carrier: Compact excavator; Backhoe loader; Wheeled excavator
