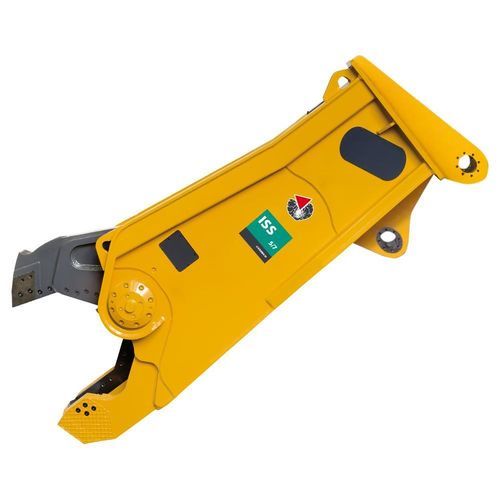

Hydraulic rail cutter shear ISS 5/7

for excavatorsfor construction equipmentfor railroads

Product overview
Hydraulic shears and rail cutter ISS 5/7 (ISS series). Designed for cutting and shearing operations on construction sites and rail maintenance.

Applications

• Compact excavator
• Miniloader
• Backhoe loader

Technical specifications

• Min. excavator weight (fixed): 4 t
• Min. excavator weight (2nd member): 5 t
• Min. excavator weight (3rd member): 7 t
• Attachment operating weight (fixed): 480 kg
• Attachment operating weight (2nd member): 570 kg
• Attachment operating weight (3rd member): 570 kg
• Maximum working pressure: 300 bar / 220 bar (low pressure version)
• Oil delivery: 50 ÷ 120 l/min
• Maximum rotation oil flow: 10 l/min
• Maximum rotation pressure: 110 bar
• Maximum clamping force at tip: 45 t
• Clamping force class: 150 t
• Length: 1700 mm
• Jaw width: 340 mm
• Jaw opening: 350 mm
• Max jaw depth: 320 mm
• Closure time: 2 ÷ 3 s
• Opening time: 1 ÷ 1.6 s
• Compatibility of attachment plate with breaker: HP 900

Carrier compatibility

• Compact excavator
• Miniloader
• Backhoe loader

Notes
N.B. Weights may vary according to the various configurations. The information in this catalog is subject to change without notice and without any obligation or responsibility on our part. The content of this catalog is provided as a courtesy to readers and constitutes non binding information only.
