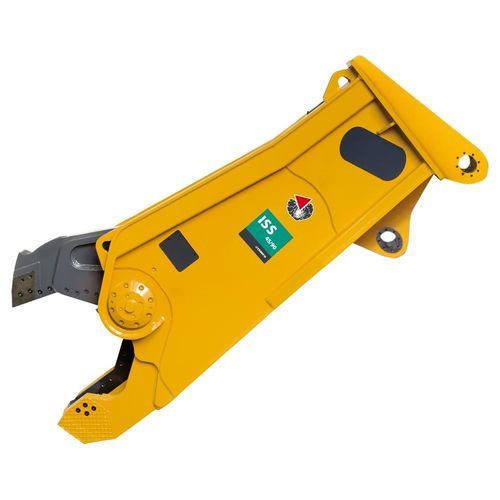

Hydraulic rail cutter shear ISS 45/90

for excavators

Product family
Hydraulic shears and rail cutters

Product
ISS 45/90

Typology
ISS

Application / carrier

• Tracked excavator

Technical specifications

• Min. excavator weight (fixed/boom-mounted): 42 ton
• Min. excavator weight (rotating, arm-mounted): 45 ton
• Min. excavator weight (rotating, bucket-mounted): 90 ton
• Attachment operating weight (fixed version): 9,700 kg
• Attachment operating weight (2nd member): 11,000 kg
• Attachment operating weight (3rd member): 10,400 kg
• Maximum working pressure: 350 bar
• Oil delivery: 360 ÷ 700 l/min
• Maximum rotation oil flow: 60 l/min
• Maximum rotation pressure: 130 bar
• Maximum clamping force at tip: 275 ton
• Clamping force class: 2,500 ton
• Length: 4,840 mm
• Jaw width: 815 mm
• Jaw opening: 1,100 mm
• Max jaw depth: 1,120 mm
• Closure time: 3.8 ÷ 7.2 s
• Opening time: 3.6 ÷ 7 s

Compatibility

• Attachment plate compatibility with breakers: HP 12000 - HP 18000

Notes
N.B. Weights may vary according to the various configurations. The information in this catalog is subject to change without notice and without any obligation or responsibility on our part. The content of this catalog is provided as a courtesy to readers and constitutes non-binding information only.
