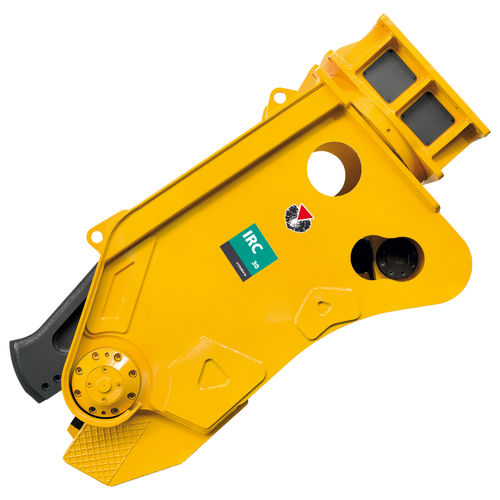

Hydraulic rail cutter shear IRC 30for excavatorsfor railroadsfor railway applications
Add to favorites
Compare this product
Characteristics
- Technology
- hydraulic
- Use
- for excavators
- Product applications
- for railroads, for railway applications, for steel, for ferrous metals
Description
Product
Category: Shears and rail cutters. Typology: IRC. Model: IRC 30.
Applications / machine types
Technical specifications
Notes
Weights may vary according to different configurations. The information in this catalog may be changed without notice and without obligation or liability. The content is provided for information only and is non-binding.
Category: Shears and rail cutters. Typology: IRC. Model: IRC 30.
Applications / machine types
- Tracked excavator
Technical specifications
- Min. excavator weight (2nd member): 20 ton
- Min. excavator weight (3rd member): 30 ton
- Attachment operating weight 2nd member: 4300 Kg
- Attachment operating weight 3rd member: 4200 Kg
- Maximum working pressure: 350 bar
- Oil delivery: 250 ÷ 400 l/min
- Maximum rotation oil flow: 30 l/min
- Maximum rotation pressure: 110 bar
- Maximum clamping force at tip: 550 ton
- Clamping force class: 1000 ton
- Length: 2650 mm
- Jaw width: 740 mm
- Jaw opening: 220 mm
- Max jaw depth: 230 mm
- Closure time: 3 ÷ 5 s
- Opening time: 2 ÷ 3 s
- Rail (<300HB): 75 Kg/m
- Compatibility of attachment plate with hammer: HP 5000
- Type of carrier: Tracked excavator
Notes
Weights may vary according to different configurations. The information in this catalog may be changed without notice and without obligation or liability. The content is provided for information only and is non-binding.
