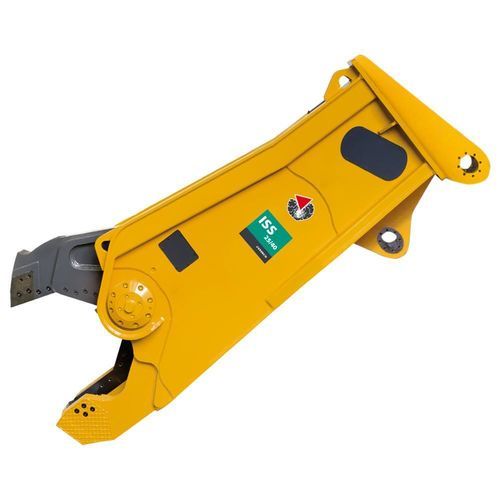

Rotary rail cutter shear ISS 25/40

hydraulicfor controlled demolitionfor excavators

Product
Hydraulic shears and rail cutter for demolition and rail cutting. Model: ISS 25/40.

Applications

• Rail cutting and dismantling
• Demolition and structural cutting tasks
• Designed for installation on tracked excavators in fixed or rotating configurations

Technical specifications

• Min. excavator weight (fixed boom-mounted): 23 t
• Min. excavator weight (rotating version, instead of front arm): 25 t
• Min. excavator weight (rotating version, instead of bucket): 40 t
• Attachment operating weight (fixed version): 4500 kg
• Attachment operating weight (2nd member): 5000 kg
• Attachment operating weight (3rd member): 4800 kg
• Maximum working pressure: 350 bar
• Oil delivery: 220 ÷ 360 l/min
• Maximum rotation oil flow: 40 l/min
• Maximum rotation pressure: 110 bar
• Maximum clamping force at tip: 195 t
• Clamping force class: 1100 t
• Length: 3500 mm
• Jaw width: 670 mm
• Jaw opening: 760 mm
• Max jaw depth: 770 mm
• Closure time: 3.2 ÷ 5 s
• Opening time: 2.8 ÷ 4.8 s

Compatibility & machine type

• Compatibility of attachment plate with breaker: HP 7000 - HP 9000
• Type of carrier: Tracked excavator

Notes
Weights may vary according to the chosen configuration. The information in this catalog is subject to change without notice and is provided for informational purposes only.
