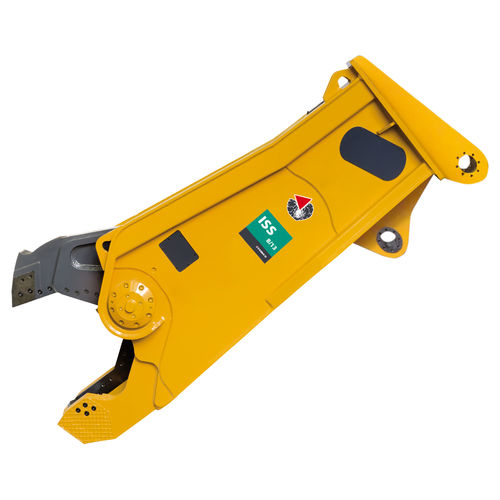

Rotary rail cutter shear ISS 8/13

hydraulicfor excavatorsfor construction equipment

Product overview
Hydraulic shears and rail cutter from the ISS series, model ISS 8/13. Designed for cutting, shearing and breaking rails and profiles on compact and medium excavators. Available in fixed (boom-mounted) and rotating versions (boom- or arm-mounted) with different operational weights and hydraulic requirements.

Applications / carrier compatibility

• Compact excavator
• Miniloader
• Backhoe loader

Technical specifications

• Min. excavator weight (fixed version, boom-mounted): 6 ton
• Minimum excavator weight (rotating version, arm-mounted): 8 ton
• Minimum excavator weight (rotating version, instead of bucket): 13 ton
• Attachment operating weight fixed version: 1050 kg
• Attachment operating weight 2nd member: 1300 kg
• Attachment operating weight 3rd member: 1250 kg
• Maximum working pressure: 350 bar
• Oil delivery: 90 ÷ 180 l/min
• Maximum rotation oil flow: 15 l/min
• Maximum rotation pressure: 110 bar
• Maximum clamping force at tip: 80 ton
• Clamping force class: 300 ton
• Length: 2100 mm
• Jaw width: 400 mm
• Jaw opening: 470 mm
• Max jaw depth: 450 mm
• Closure time: 2.9 ÷ 5 s
• Opening time: 1.5 ÷ 3 s
• Compatibility of attachment plate with breaker: HP 2000 - HP 2500
• Type of carrier:
  • Compact excavator
  • Miniloader
  • Backhoe loader

Notes
N.B. Weights may vary according to the various configurations. The information in this catalog is subject to change without notice and without any obligation or responsibility on our part. The content of this catalog is provided as a courtesy to readers and constitutes non binding information only.
