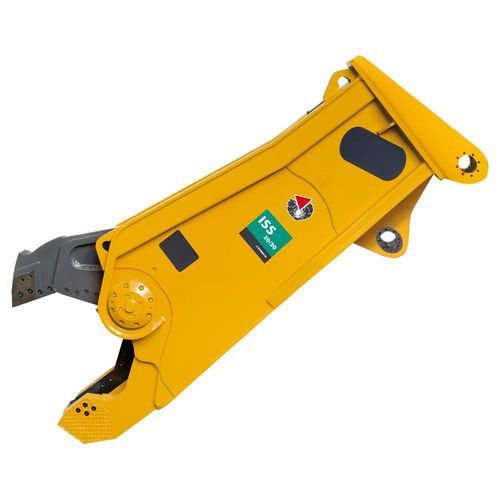

Hydraulic rail cutter shear ISS 20/30

for excavatorsfor railroadsfor railway applications

Product
Hydraulic shears and rail cutter ISS 20/30 — shears and rail-cutting attachment for tracked excavators (typology: ISS).

Applications / type of carrier

• Tracked excavator

Technical specifications

• Min. excavator weight (fixed version, boom-mounted): 18 t
• Min. excavator weight (rotating version, instead of arm): 20 t
• Min. excavator weight (rotating version, instead of bucket): 30 t
• Attachment operating weight (fixed version): 3250 kg
• Attachment operating weight (2nd member): 3600 kg
• Attachment operating weight (3rd member): 3650 kg
• Maximum working pressure: 350 bar
• Oil delivery: 200 ÷ 300 l/min
• Maximum rotation oil flow: 30 l/min
• Maximum rotation pressure: 110 bar
• Maximum clamping force at tip: 140 t
• Clamping force class: 800 t
• Length: 3400 mm
• Jaw width: 560 mm
• Jaw opening: 660 mm
• Max jaw depth: 680 mm
• Closure time: 2.8 ÷ 4 s
• Opening time: 2.6 ÷ 3.8 s
• Compatibility of attachment plate with breaker: HP 7000 - HP 9000
• Type of carrier: Tracked excavator

Notes
N.B. Weights may vary according to the chosen configuration. The information in this catalog is subject to change without notice and is provided as non-binding information.
