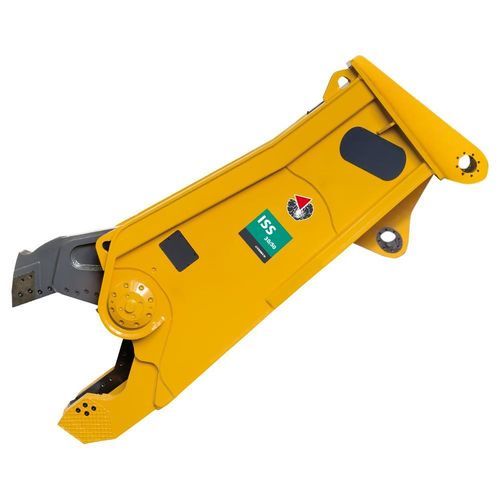

Hydraulic rail cutter shear ISS 30/50

for excavatorsfor controlled demolitionfor ferrous metals

Product
Hydraulic rail shear attachment for tracked excavators. Model: ISS 30/50.

Applications
Cutting and shearing of rails, demolition and recycling of ferrous materials, on-site dismantling and scrap processing.

Key specifications

• Min. excavator weight (fixed/boom-mounted): 27 ton
• Min. excavator weight (rotating, arm-mounted): 30 ton
• Min. excavator weight (rotating, bucket-mounted): 50 ton
• Attachment operating weight (fixed): 5600 kg
• Attachment operating weight (2nd member): 6300 kg
• Attachment operating weight (3rd member): 6100 kg
• Maximum working pressure: 350 bar
• Oil delivery: 240 ÷ 400 l/min
• Maximum rotation oil flow: 50 l/min
• Maximum rotation pressure: 130 bar
• Maximum clamping force at tip: 210 ton
• Clamping force class: 1300 ton
• Length: 4040 mm
• Jaw width: 680 mm
• Jaw opening: 850 mm
• Max jaw depth: 860 mm
• Closure time: 3.6 ÷ 5.8 s
• Opening time: 3.4 ÷ 5.6 s
• Compatibility of attachment plate with breaker: HP 7000 - HP 9000
• Type of carrier: Tracked excavator

Notes
Weights may vary according to the chosen configuration. Information is subject to change without notice; catalog content is provided as non-binding information.
