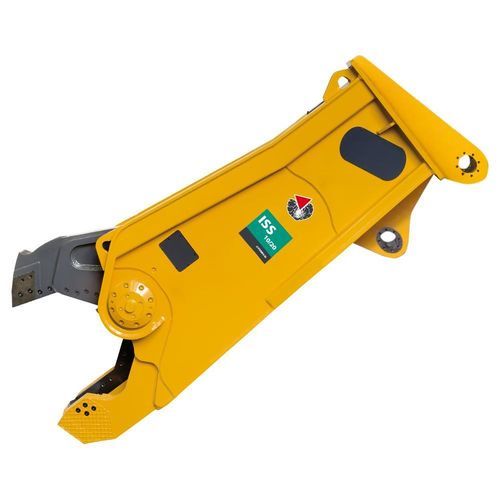

Rotary rail cutter shear ISS 10/20

hydraulicfor excavatorsfor construction equipment

Product
Shears and rail cutters

Model
ISS 10/20

Series
ISS

Description
Hydraulic shears and rail cutter intended for demolition and recycling applications. Available in fixed (boom-mounted) and rotating configurations for installation in place of the arm or the bucket. Attachment plate compatible with breakers HP 3000 ÷ HP 4000.

Technical specifications

• Min. excavator weight (fixed version, boom-mounted): 8 ton
• Min. excavator weight (rotating version, instead of arm): 10 ton
• Min. excavator weight (rotating version, instead of bucket): 20 ton
• Attachment operating weight (fixed version): 2000 kg
• Attachment operating weight (2nd member): 2400 kg
• Attachment operating weight (3rd member): 2400 kg
• Maximum working pressure: 350 bar
• Oil delivery: 100 ÷ 200 l/min
• Maximum rotation oil flow: 20 l/min
• Maximum rotation pressure: 110 bar
• Maximum clamping force at tip: 120 t
• Clamping force class: 600 t
• Length: 2724 mm
• Jaw width: 450 mm
• Jaw opening: 550 mm
• Max jaw depth: 570 mm
• Closure time: 2.4 ÷ 4.6 s
• Opening time: 2.2 ÷ 4.2 s
• Compatibility of attachment plate with breaker: HP 3000 ÷ HP 4000

Compatible carriers

• Wheeled excavator
• Tracked excavator

Notes
N.B. Weights may vary according to the various configurations. The information in this catalog is subject to change without notice and without any obligation or responsibility on our part. The content of this catalog is provided as a courtesy to readers and constitutes non-binding information only.
