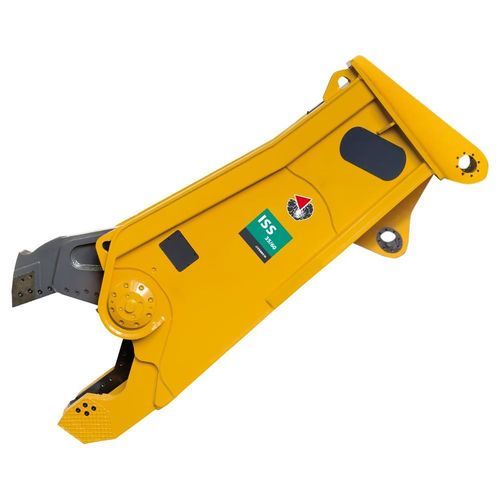

Rotary rail cutter shear ISS 35/60for construction equipmentfor railway applicationsfor railroads
Add to favorites
Compare this product
Characteristics
- Technology
- rotary
- Use
- for construction equipment
- Product applications
- for railway applications, for railroads
Description
Product type
Rail shears and rail cutters (excavator attachment)
Model
ISS 35/60
Overview
Attachment for tracked excavators, available in fixed (boom-mounted), 2nd member (rotating boom-mounted) and 3rd member (rotating bucket-mounted) configurations. Compatible with breaker plate HP 12000 - HP 18000. Carrier type: tracked excavator.
Technical specifications
Notes
N.B. Weights may vary according to the various configurations. The information in this catalog is subject to change without notice and without any obligation or responsibility on our part. The content of this catalog is provided as a courtesy to readers and constitutes non binding information only.
Characteristics / Technical specifications
Rail shears and rail cutters (excavator attachment)
Model
ISS 35/60
Overview
Attachment for tracked excavators, available in fixed (boom-mounted), 2nd member (rotating boom-mounted) and 3rd member (rotating bucket-mounted) configurations. Compatible with breaker plate HP 12000 - HP 18000. Carrier type: tracked excavator.
Technical specifications
- Min. excavator weight (fixed, boom-mounted): 33 t
- Min. excavator weight (rotating, arm-mounted): 35 t
- Min. excavator weight (rotating, bucket-mounted): 60 t
- Attachment operating weight (fixed): 6800 kg
- Attachment operating weight (2nd member): 7500 kg
- Attachment operating weight (3rd member): 7600 kg
- Maximum working pressure: 350 bar
- Oil delivery: 300 ÷ 550 l/min
- Maximum rotation oil flow: 50 l/min
- Maximum rotation pressure: 130 bar
- Maximum clamping force at tip: 240 t
- Clamping force class: 1500 t
- Length: 4100 mm
- Jaw width: 760 mm
- Jaw opening: 950 mm
- Max jaw depth: 970 mm
- Closure time: 3.6 ÷ 6.4 s
- Opening time: 3.2 ÷ 5.6 s
- Breaker compatibility: HP 12000 - HP 18000
- Carrier type: Tracked excavator
Notes
N.B. Weights may vary according to the various configurations. The information in this catalog is subject to change without notice and without any obligation or responsibility on our part. The content of this catalog is provided as a courtesy to readers and constitutes non binding information only.
Characteristics / Technical specifications
- Min. excavator weight (fixed, boom-mounted): 33 t
- Min. excavator weight (rotating, arm-mounted): 35 t
- Min. excavator weight (rotating, bucket-mounted): 60 t
- Attachment operating weight (fixed): 6800 kg
- Attachment operating weight (2nd member): 7500 kg
- Attachment operating weight (3rd member): 7600 kg
- Maximum working pressure: 350 bar
- Oil delivery: 300 ÷ 550 l/min
- Maximum rotation oil flow: 50 l/min
- Maximum rotation pressure: 130 bar
- Maximum clamping force at tip: 240 t
- Clamping force class: 1500 t
- Length: 4100 mm
- Jaw width: 760 mm
- Jaw opening: 950 mm
- Max jaw depth: 970 mm
- Closure time: 3.6 ÷ 6.4 s
- Opening time: 3.2 ÷ 5.6 s
- Breaker compatibility: HP 12000 - HP 18000
- Carrier type: Tracked excavator
