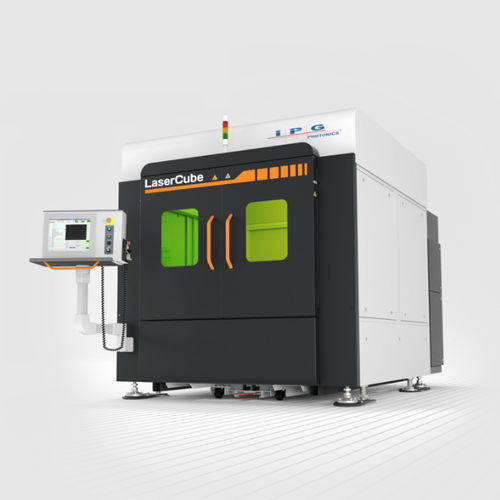

Fiber laser cutting system LaserCube

for aluminumfor stainless steelfor copper

Overview
LaserCube flatbed fiber laser cutting systems are engineered for fast, reliable precision cutting of small parts in production environments, from prototyping to series production. IPG fiber laser sources and industrial-grade system components provide controlled cutting edges across a wide range of materials and thicknesses, from thin foils to up to approximately 12.7 mm steel.

Highlights

• Laser power up to 6 kW (IPG fiber laser options)
• Positioning accuracy: ±25 μm; repeatability <10 μm
• Maximum cutting speed: 1000 mm/s
• Compact footprint: approx. 5.7 m²
• Granite base for vibration damping and structural stiffness
• High-precision linear motors and encoders

Design & Components

• Flatbed configuration with telescoping drawer and metal cutting bed
• IPG cutting head and selectable IPG laser source (internal or external integration)
• Optional rotary for tube cutting and optional external pallet support for heavy sheets
• Manual clamping standard; pneumatic clamping optional

Software & Control

• IPG software preloaded and factory-tested; user-oriented HMI compliant with CNC G-code
• Integrated control of laser, motion, beam delivery, process parameters and vision
• Live G/M code display with production controls for interrupt and resume
• Editable library of cutting parameter tables and on-machine part nesting

Vision Registration (optional)

• Optional vision system for accurate cut placement when part or feature positions vary
• Suitable for pre-processed materials (screen-printed plates, punched parts, chemically etched components)
• Automatic compensation for dimensional deviations and operator placement variation
• Enables laser-punch combo workflows when integrated with existing punch presses

Reliability & Maintenance

• Fiber laser design eliminates mirrors in the source and reduces consumables, lowering maintenance needs
• Stable IPG laser output and robust mechanical design reduce downtime and support long-term process stability

Technical specifications

• Maximum cutting speed: 1000 mm/s
• Laser power: up to 6 kW (configurable)
• Materials: stainless/low-carbon steel, aluminum, brass, copper, laminated foils
• XYZ working range: 1250 x 1250 x 75 mm (rotary optional)
• Positioning accuracy: ±25 μm; repeatability <10 μm
• Material loading: telescoping drawer with metal bed; optional external pallet support; optional automated loading
• Part tooling: manual clamping; pneumatic clamping optional
• Control software: CNC G-code compliant HMI
• Display & operation: 17" monitor with keyboard and mouse
• Safety & compliance: Class 1 laser safety; CE certified
• Beam delivery: IPG cutting head; laser source selected per application
