Heating system

Overview

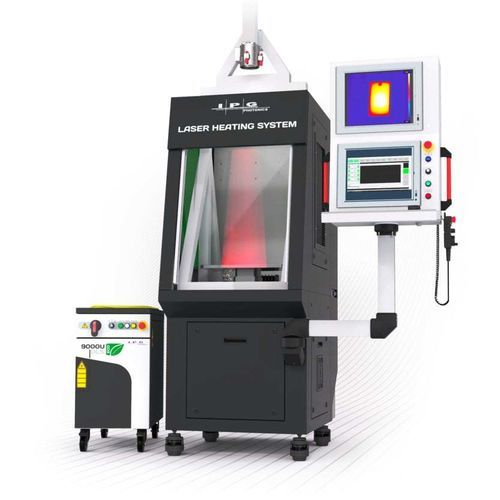

The Laser Heating System DLS-ECO is a turnkey workstation for in-house development of laser heating, curing and drying processes. It integrates IPG DLS-series lasers with projection optics inside a Class 1 laser enclosure to enable safe, repeatable process development and scale-up for industrial applications.

Key features

• DLS-ECO laser efficiency: 55%
• IPG DLS series compatibility (4.5–20 kW)
• Projection optics and IPG projection head for controlled beam delivery
• Integrated visible and infrared vision; optional FLIR thermal camera and pyrometer control loop
• Water-cooled cold plate work table; optional integrated air knife and gas delivery
• Dual-monitor HMI with IPG Core software; manual part loading
• Fume extraction with flow, temperature and VOC monitoring

Sustainable, energy-efficient heating & drying

• FAST: Laser processes can be up to 10× faster than conventional furnaces and convection ovens.
• EFFICIENT: Energy is delivered to the target surface only, reducing unproductive waste heat.
• GREEN: All-electric laser heating reduces reliance on fossil-fuel-based thermal processes.

Precise drying process control
The cold-laser environment allows advanced metrology and closed-loop control not possible in traditional high-temperature ovens. Pyrometer monitoring and control loops enable precise temperature management and repeatable drying cycles across batches.

Drying process control loop (sequence)

• 1. Laser at full power rapidly heats the material to the target temperature to initiate drying.
• 2. Closed-loop control prevents the material from exceeding the target temperature range.
• 3. Control loop optimizes laser power during moisture removal for stable drying rates.
• 4. Control loop reduces power and shuts the laser off when moisture removal is complete.

Technical specifications

• DLS-ECO Laser Efficiency: 55%
• Z-lift stage travel: 600 mm
• Illumination area (XY): ~90 x 90 mm min to ~200 x 200 mm max
• Work table: water-cooled cold plate; optional integrated air knife and gas delivery
• Part loading: manual
• Display & operation: dual monitors with keyboard & mouse
• Controller software: IPG Core HMI
• Vision: visible & infrared; optional FLIR thermal camera
• Thermal metrology: optional pyrometer control loop
• Fume extraction: exhaust with flow, temperature & VOC monitoring
• Dimensions (W x D x H): 1000 x 1260 x 3050 mm
• IPG laser source: DLS series (4.5–20 kW); laser integration external
• Beam delivery head: IPG projection head
