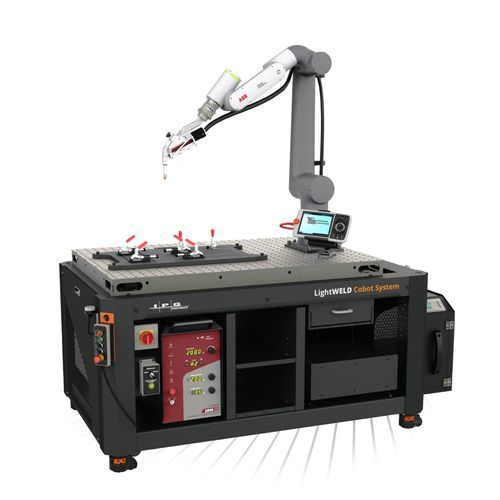

Robotic welding cell LightWELD® Cobot System

compactwith collaborative robotscollaborative

Overview
The LightWELD® Cobot System is a collaborative robot laser welding and cleaning system compatible with any LightWELD laser source. It is designed to automate repetitive welds, support high-mix low-volume fabrication and free skilled welders for higher-value tasks.

Key features

• Compatibility with all LightWELD laser sources
• Collaborative robot (cobot) for laser welding and cleaning tasks
• No programming experience required — manual teach (hand-guidance) to record welding paths
• Intuitive single-screen interface for presets, laser parameters and robot control
• Integrated and modular freestanding safety enclosures for laser safety
• Compact, portable form factor for flexible shop-floor deployment

Applications / Capabilities

• Process a mix of small, large, simple or complex parts
• Weld a variety of joints and materials, including inverted/overhead positions
• Operate on the welding table or adjacent work surfaces for flexible fixturing

Powered by LightWELD
The system uses LightWELD® laser technology — the same platform as handheld LightWELD solutions — to deliver predictable laser parameters, rapid setup and consistent results across welding and cleaning operations.

Technical specifications

• Laser power: up to 2 kW (depends on selected LightWELD source)
• Welding capacity: up to 8 mm (approx. 0.315 in), application dependent
• Welding & cleaning presets: 100 configurable presets
• Programming: manual teach-in (no coding required)
• Control: single-screen interface for presets, laser parameters and robot control
• Safety: integrated/modular freestanding safety enclosures
• Form factor: compact and portable for workshop floors
• System type: collaborative robot laser welding and cleaning system
