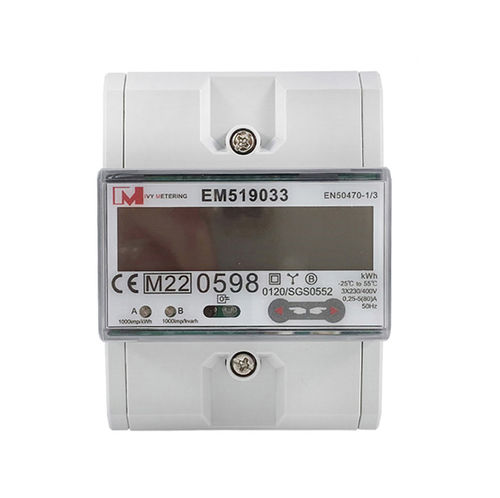

Three-phase electrical energy meter EM5190 series

DIN railMID certifiedpulse output

The EM519032-24 series is a robust and versatile energy meter that offers a wide range of features and complies with relevant industry standards. Its compact design, multiple communication options, and accurate measurement capabilities make it an excellent choice for various energy monitoring applications.These bi-directional meters from IVY METERING display three readings: Import, export and Net (import deducted from Export). Widely used in the fields of EV charging and PV solar power generation. implement a meter between the electric car charger and general electric box, Solar Energy System Electricity Bi-Directional Energy Meter. It comply with MID ceritificate. Brief Introduction The EM5190 series comprises three-phase four-wire DIN rail mounted postpaid electricity meters designed for accurate energy measurement. They operate at 3*230/400V with a 5(80)A current range and a pulse output of 1000 imp/kWh, achieving Class 1 accuracy. Key features include active and reactive energy metering, and IR communication (EN62056 (IEC1107) protocol). Specific models offer additional functionalities like RS485 (Modbus protocol), MID certification, and bidirectional active energy measurement with tariff support. All models are suitable for standard DIN rail installation. Multi-functional: Measures active and reactive energy, calculates maximum demand, and offers various tariff options. Compliance: Adheres to EN50470-1/3 standards and is suitable for mechanical environment M1 and electromagnetic environment E2. Compact and Durable: Small footprint, lightweight, and designed for harsh environments. Configurable: Offers multiple measurement modes, pulse output options,
