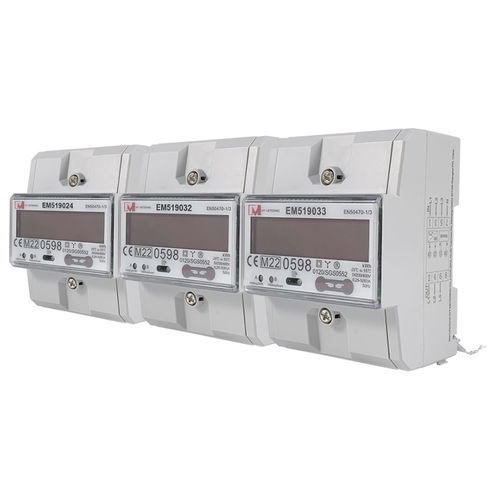

Three-phase electric energy meter EM5190 series

DIN railRS-485MID certified

EM519033 pro version, is the newest version of EM519033. it 's 100A instead of 80A. it's EMC LVD and MID certified but not only mid approval. The EV meters are MID approved with a Class B accuracy. MID is the Measure Instruments Directive 2014/32/EU from European Commission. The approval is according to standards that covers all relevant technical aspects of the meter. These include climate conditions, electromagnetic compatibility (EMC), electrical requirements, mechanical requirements and accuracy. Function Description (1) Measurement of forward and reverse energy (optional), total/each phase active energy, total/each phase voltage, total/each phase current, total/each phase active power, power factor and frequency (2) Extremely compact din rail (3) Bi-directional measurements in 4 quadrants for all energies and powers (4) RS485 Communication Modbus RTU Protocol; IR Communication EN62056（IEC1107) Protocol (5) Data Monitoring and Energy Quality Analysis by PC (6) Programmable multi-tariff and friendly hours (7) High anti-humidity and no condensation (8) Good reliability, compact size, light weight, easy installation, (9) Coverage of the sealable terminals to prevent tampering or configuration changes (10) MID version supplied with terminal covers and seals (11) LCD Display Large backlit LCD that enables easy reading,Display LCD with 7 digits in single-phase models (12) View of accumulating meter and instantaneous powers of the LCD (13) Ability to display from 7 to 10 instantaneous measured parameters in single-phase & three-phase models (14) Complete set of energy meters and partial meters, with possibility to be started, stopped or cleared
