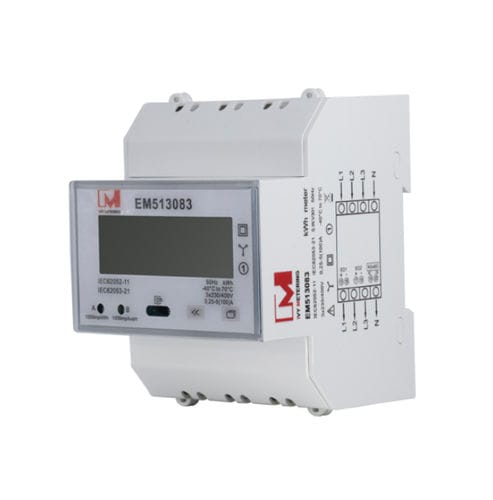

Bi-directional electric energy meter EM513082

three-phaseDIN railRS-485

The EM513082 is a reliable Class B three-phase smart meter providing precise measurement of both active and reactive energy. With a voltage rating of 3x230/400V and a current range of 5(100)A, this meter supports both forward and reverse energy measurement, ensuring comprehensive monitoring. Compliant with EN50470-1/3 requirements, it offers versatile RS485 communication, seamlessly supporting both the widely adopted Modbus protocol and the DLT645 protocol, enabling easy integration into various monitoring systems. The inclusion of a built-in battery ensures data integrity during power interruptions, and the integrated tariff function allows for multi-rate energy billing. Its compact design allows for simple DIN rail mounting. Features of our Bidirectional meter The electricity meter has been approved by CE, MID (B+D) Din Rail Mounted Direct connection Real-time reading of electricity meter data through RS485 communication port optional Bidirectional energy metering Active/reactive energy and forward and reverse measurement Various Measurement mode Frequency range: 50 Hz LED: 1 flasher/button Model: Efuturo electric meter for DIN Guide, Mid Tarato, 3 phases, 11 or 22 kW Power supply: 3 x 230 V / 400 V Environmental class: mechanic: M1, electromagnetic: E1 Why choose this series? 3-Phase Measurement: Suitable for industrial and commercial applications with 3-phase power. DIN Rail Mounting: Easy installation in electrical panels and distribution boards. RS485 Modbus Communication: Enables remote monitoring and data acquisition, allowing integration with control systems. 100A Capacity: Handles significant power loads.
