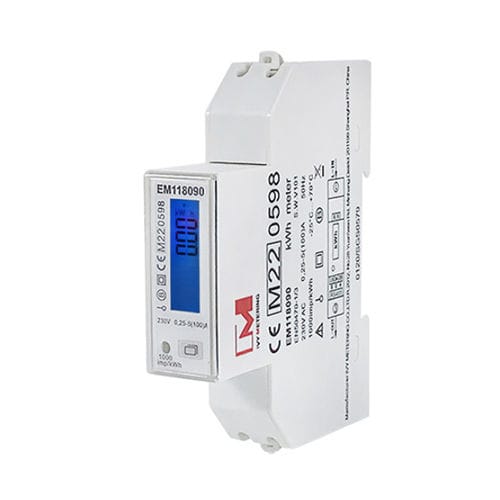

Single-phase electric energy meter EM118 series

DIN railRS-485MID certified

"EM118089/90/91" series meters are designed for DIN-Rail installation, suitable for grid-connected PV solar energy metering projects and EV charging metering solutions, the meters can measure and display various important power parameters, and can be passed through The RS485 communication port reads the data of the meter in real time. The meter has passed the approval of MID, EMC, and LVD. The bi-directional energy measurement makes the meter an excellent choice for solar metering. Function Description MID approved with module B & D certification. Bidirectional energy metering Display of Voltage, Ampere, kW, PF, Hz, +kWh,-kWh,ΣkWh Total energy usage can be calculated via 4 different modes. Display Modbus RTU Interface data:baud rate, Modbus ID, Parity Reactive power and reactive energy available through the interface S0pulse output (EM118089), transmission of measured values via pulses. LCD display,Clear blue backlight display Accuracy class B according to EN50470-3 Accuracy class 1 according to IEC62053-21
