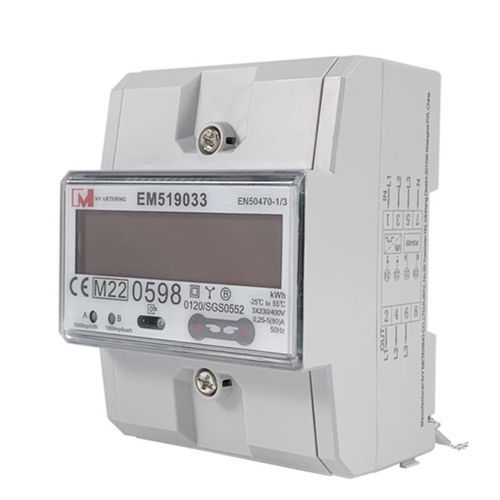

Three-phase electric energy meter EM519033

DIN railMID certifiedModbus

EM519033 is a 3 phase 4 wires 80A WALLBOX/solar bidirectional electricity meter compliant with the MID directive is certified to measure the amount of electricity used for charging.It supports: Measurement of electricity consumption in three-phase load,Backlit LCD screen,For DIN-rail bracket,Built-in counter, IR & RS485 communication and Modbus protocol. The measurement modes can be optional: forward, forward+reverse, forward-reverse. Brief introduction EM519033 is a 3-phase 4 wires 80A WALLBOX/solar bidirectional electricity meter compliant with the MID directive is certified to measure the amount of electricity used for charging. It supports the measurement of electricity consumption in a three-phase load, Backlit LCD screen,For DIN-rail bracket, Built-in counter, IR & RS485 communication, and Modbus protocol. The measurement modes can be optional: forward, forward+reverse, forward-reverse. Specification Power Consumption ≤1.5W / <10VA Accuracy Class Class B Frequency 50Hz Impulse Constant 1000imp/kWh, 1000imp/kVarh LCD Display (Backlight) LCD6+2 Operation Temp. Range -20～70℃ (Non Condensing) Annual Average Humidity 85% Max Humidity 95% Reference Standard EN50470-1/3 SO Output Yes
