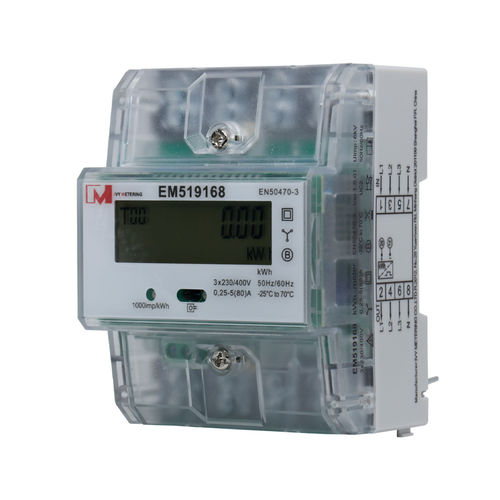

Three-phase electric energy meter EM5191 series

DIN railRS-485MID certified

The EM519167 is a high-precision (Class 1) three-phase smart meter designed for accurate energy measurement. Operating at 3x230/400V and 5(80)A, this meter supports bi-directional active energy metering and complies with the latest MID standards. It features RS485 communication for remote data acquisition, a built-in battery for power outage display, a convenient backlight for easy reading, and is designed for simple DIN rail installation. Product Introduction The EM519167 is a high-precision (Class 1) three-phase smart meter designed for accurate energy measurement. Operating at 3x230/400V and 5(80)A, this meter supports bi-directional active energy metering and complies with the latest MID standards. It features RS485 communication for remote data acquisition, a built-in battery for power outage display, a convenient backlight for easy reading, and is designed for simple DIN rail installation. Key Features Accuracy: Class 1 precision. Voltage and Current: 3x230/400V, 5(80)A. Metering Functionality: Supports active forward and reverse energy measurement (Bi-directional). MID Compliance: Meets the latest MID standards. Communication: Integrated RS485 for remote data access. Power Outage Feature: Built-in battery for display during power loss. Readability: Backlight for clear display in various conditions. Installation: DIN rail mounting for easy installation. What's dual power source A dual power source electricity meter is an advanced type of meter designed to measure the electrical energy used from two distinct power supplies. These two sources could be: The main utility grid and a backup generator. This is a common application,
