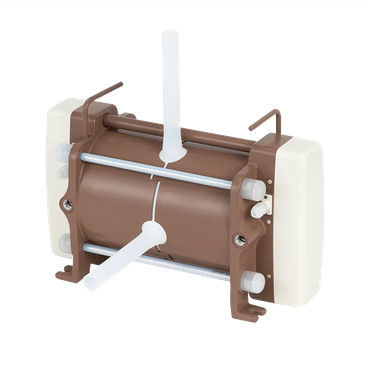

Bellows pump FS-H

slurrypneumaticstationary

High-speed strokes An incease in the speed of pump strokes (240 spm maximum) resulted in a reduction of size, weight and costs involved in the manufacture of the pump as well as a decrease in pulsation. Note: Pump strokes are different depending on the pump model. Contamination free design All of the parts which come into contact with liquid are made of fluororesin. The pump is designed so no metal portion is exposed. The exterior is also coated with fluororesin. The use of a shaft seal (patent pending), our own development, has the effect of remarkably decreasing the production of particles. Wide range of liquid temperatures/ High-pressure discharge As it can handle liquids with temperatures ranging from 5 – 180˚C with discharge pressures up to 0.45MPa, the pump is usable not only for washing processes and CMP processes but also for feeding chemical liquids. Facility of maintenance The proximity switch can be replaced without disassembling the pump and regular tightening of stud bolts is unnecessary, resulting in reduced downtime. Sensor drive system The pump uses the sensor drive system which opens/closes the solenoid by means of a proximity switch built internally. Therefore, when connected to various controllers, the discharge can be controlled or managed easily.
