IGBT transistor PDSP series

power

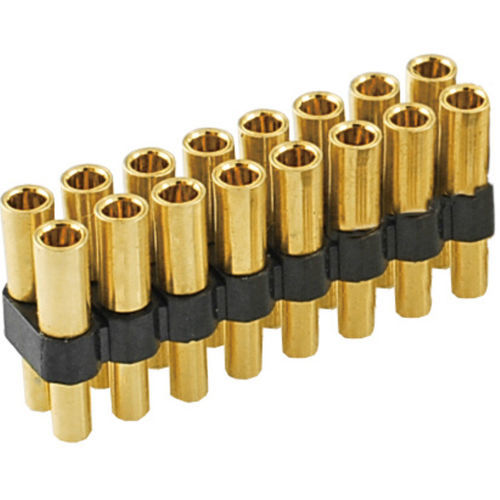

Medium Size Socket for Power IC Through hole type Dual Style 2.54mm / 0.100" Pitch ●How to order 　ex: PDSP-CM1-Dxx-GG x: Number of positions 04,12,20 (Even Number) *Regarding to other number of position, please feel free to contact us. Dielectric Strength - Insulation Resistance - Operating Temperature - - Sleeve - Brass, Au plating over Ni Contact - Copper Alloy, Au plating over Ni Insulator - High Temp. Thermoplastic By customizing the arrangement of socket pins, it can also be used for evaluation of power semiconductors such as IPM and IGBT. Possible for Kelvin measurement Able to select the wiring specifications Support the High Temperature environment Positioning boss enable the layout with high position accuracy According to the contacts are 2.85 mm from the top of the socket, it's able to reach the measurement with low inductance. Board mounting strength is secured by screw and nut.
