Power Transistor Sockets
Pitch
High Temperature
Low Outgassing
Multi-pole type

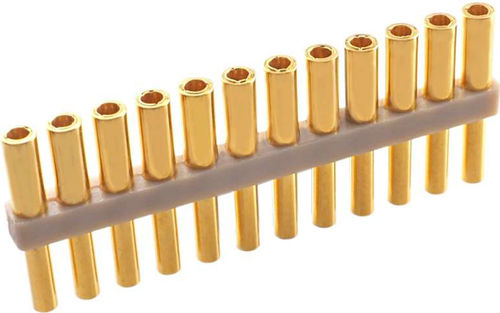

High reliability round contact providing good electrical and mechanical performance. Power Transistor Test Sockets accommodate various packages and the sockets are compatible with using for under high-temperature environment.
Acceptable Package : TO-220,TO-257,TO-262,etc
Acceptable lead size φ0.85 - 1.1mm/0.335" -0.043"
Current Rating -
Contact Resistance -
Dielectric Strength -
Insulator Resistance -
Operating Temperature - -
Pitch -
Sleeve - Brass, Au Plating over Ni
Contact - High Temperature Copper Alloy
Insulator - High Temp. Thermoplastic
As it might able to be use depends on the device such assquare lead.
By customizing the arrangement of socket pins,
it can also be used for evaluation of power semiconductors such as IPM and IGBT.
Possible for Kelvin measurement
Able to select the wiring specifications
Support the High Temperature environment
Positioning boss enable the layout with high position accuracy
According to the contacts are 2.85 mm from the top of the socket, it's able to reach the measurement with low inductance.
Board mounting strength is secured by screw and nut.
