Multi-channel manifold JW-200

316 stainless steelfor gasfor medical devices

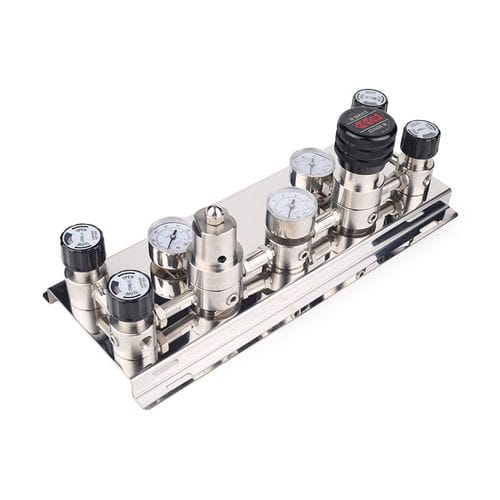

Overview An Automatic Gas Switchover Manifold JW-200 provides uninterrupted gas supply by automatically switching between cylinder banks or sources when the primary supply is depleted. Intended for laboratories, industrial processes and medical or analytical applications requiring high‑purity gases. The assembly includes manifold body, pressure regulators, valves, sensors and optional purge/alarm or display modules.

Product Details

• Place of Origin: Guangdong, China (Mainland)
• Brand Name: Jewellok
• Certification: CE; ISO9001:2008
• Model Number: JW-200
• Minimum Order Quantity: 1-9 Pieces
• Price: Negotiable

Key Features

• JW-200 series stainless steel (316L) high‑pressure changeover manifold for high‑purity gases (O2, N2, Ar, He, H2, CO2, etc.).
• Maximum inlet pressure up to 20.7 MPa (3000 psi).
• Automatic changeover ensures continuous supply from empty to full cylinders.
• Built‑in purge capability for diaphragm valve and configurable purge paths.
• Typically supplied with three Jewellok series pressure regulators; alternative regulators supported.
• Configurable cylinder connection arrangements (e.g., 1*1, 2*2, 3*, 4*4) to match installation needs.
• Corrosion‑resistant design and clean workshop assembly for laboratory and high‑purity gas analysis.

Specifications (summary) Maximum Inlet Pressure: 3000 psig
Output Pressure Ranges: 0~25, 0~50, 0~100, 0~250 psig (various ranges available)
Working Temperature: -40 ~ +74 °C (-40°F to 165°F)
Applied Gas: High‑purity gases, standard gases, corrosive gases as configured
Certificate: ISO9001:2008; CE
Body Material: SS316, nickel‑plated brass (depending on series)
Warranty: 1 Year
Selling Units: Single item
Single Package Size: 36 x 15 x 26 cm
Single Gross Weight: 7.87 kg
Package Type: PP Box + export Carton

Product Description JW-200 Series stainless steel high‑pressure specialty gas changeover manifold designed for high‑purity oxygen, nitrogen, argon, helium, hydrogen, CO2. Suitable for high‑pressure cylinders on both inlet sides; automatic changeover and purge capability provide reliable continuous supply. Maximum input pressure 20.7 MPa (3000 psi). Constructed for corrosion resistance with clean assembly and testing procedures for laboratory and analytical use.

Technical parameters Maximum Inlet Pressure: 500, 3000 psig (model dependent)
Outlet Pressure Ranges: 0~25, 0~50, 0~100, 0~250, 0~500 psig (varies by model)
Safety Test Pressure: 1.5 × maximum inlet pressure
Operating Temperature: -40°C to 74°C / -40°F to 165°F
Leakage Rate Against Atmosphere: 2 x 10^-8 atm cc/sec He
Cv Value: 0.14

Material of Parts Body: 316L
Bonnet: 316L
Diaphragm: 316L
Strainer: 316L (10 mm)
Seat: PCTFE, PTFE, Vespel (options)
Spring: 316L
Plunger Valve Core: 316L

Application / Series matrix Series: JW-200 — inlet/outlet connection examples: 6 mm barb / 1/4" O.D. / 8 mm barb / 3/8" O.D.; outlet examples: 1/4" welding, 3/8" welding, 5/16" welding, 1/4" O.D.; typical inlet pressures H:1000 psi, M:500 psi, L:300 psi; outlet setpoints selectable (25, 50, 100, 150, 250 psi) depending on configuration. Suitable gases: O2, H2, C2H2, CH4, Ar, He, N2, Air (port/series dependent).

Notes Customized manufacturing supported for tailored specialty gas delivery systems. Installation must consider gas type, flow and pressure requirements. Regular maintenance recommended: leak checks, sensor calibration and periodic valve inspection.
