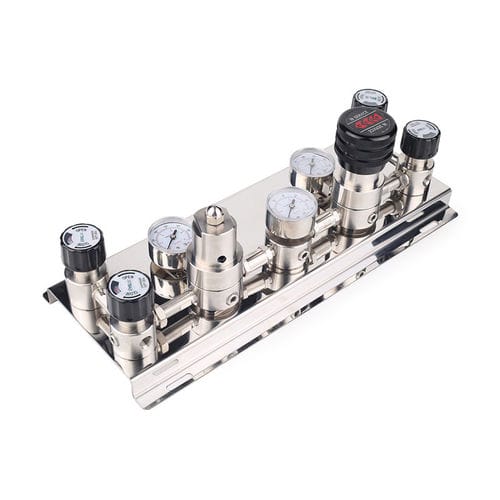

Multi-channel manifold JW-200

316 L stainless steelfor gasmulti-port

Product Details
Place of Origin: Guangdong, China (Mainland); Brand Name: Jewellok; Certification: CE; Model Number: JW-200; Minimum Order Quantity: 1-9 Pieces; Price: Negotiable

Short Description
Stainless steel high-pressure specialty gas changeover manifolds enable continuous supply of high-purity gases (O2, N2, Ar, He, H2, CO2) by connecting multiple cylinders and automatically switching to a full source when one is depleted. Designed for uninterrupted, contamination-sensitive industrial and laboratory gas supply.

Product Description (JW-200 Series)
The JW-200 Series is a stainless steel, high-pressure changeover manifold for cylinder banks with pressure relief on both sides. It provides automatic changeover for continuous supply and includes a purge function for diaphragm valves. Maximum inlet pressure up to 20.7 MPa (3000 psi). Assembled and tested in a clean workshop environment to support high-purity gas applications such as gas analysis and semiconductor processes.

Key Features

• Purge function for diaphragm valve
• Supplied with three Jewellok series pressure regulators (compatible with other regulators)
• Configurable continuous supply layouts: 1×1, 2×2, 3×3, 4×4
• Automatic changeover detection and switching to maintain uninterrupted flow

Technical parameters (summary)

• Maximum inlet pressure: 500, 3000 psig (20.7 MPa)
• Outlet pressure options: 0~25, 0~50, 0~100, 0~250, 0~500 psig
• Safety test pressure: 1.5 × maximum inlet pressure
• Operating temperature: -40°C to 74°C (-40°F to 165°F)
• Leakage rate against atmosphere: 2×10-8 atm cc/sec He
• Cv value: 0.14

Materials & Construction

• Material: 316L stainless steel
• Body, bonnet, diaphragm, spring, plunger valve core: 316L
• Strainer: 316L (10 mm)
• Seats: PCTFE, PTFE, Vespel

Packaging & Warranty
Selling units: Single item; Single package size: 36 x 15 x 26 cm; Single gross weight: 7.87 Kg; Package type: PP box + export carton; Warranty: 1 Year

Applications & Uses
Suitable for high-purity and specialty gases including O2, N2, Ar, He, H2, CO2. Typical applications: laboratory gas supply, semiconductor manufacturing, medical gas systems, welding and industrial gas supply, gas analysis, and renewable energy/hydrogen systems.

Specifications / Technical data

• Model: JW-200
• Material: 316L SS
• Maximum inlet pressure: 500, 3000 psig (20.7 MPa)
• Outlet pressure options: 0~25, 0~50, 0~100, 0~250, 0~500 psig
• Working temperature: -40°C to 74°C (-40°F to 165°F)
• Applicable gases: high-purity gases, standard gases, corrosive gases
• Certificates: ISO9001:2008, CE
• Body materials: SS316 and nickel-plated brass (depending on port/config)
• Leakage rate (against atmosphere): 2×10-8 atm cc/sec He
• Cv value: 0.14
• Strainer: 316L (10 mm)
• Seats: PCTFE, PTFE, Vespel
• Connections: multiple inlet/outlet options (6/8/10 mm barb, 1/4", 3/8", 1/2" weld or O.D. tubing)
