Ultra-high-purity gas gas control unit JW100

automatic

Product Details

• Place of Origin: Guangdong, China (Mainland)
• Brand: Jewellok
• Certification: CE
• Model / Series: JW100
• Minimum Order Quantity: ≥1 set
• Supply Ability: 5000 sets/week
• Typical Packaging: Export packing

Highlights

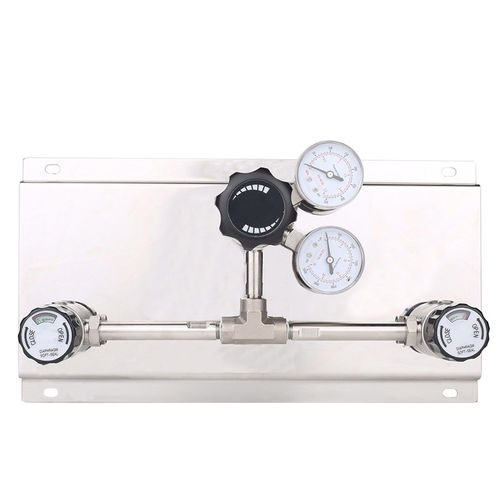

• High-pressure, high-flow gas control panel for specialty gases
• Diaphragm valve technology for low internal volume and leak-tight isolation
• Semi-automatic changeover manifold with purge capability

Key Specifications (table)

• Max inlet pressure: 2200 psi or 3000 psi (20.7 MPa)
• Outlet pressure ranges: 0–25, 0–50, 0–100, 0–150, 0–250 psig
• Working temperature: -40°C to +74°C (-40°F to +165°F)
• Leakage rate: 2 x 10-8 atm·cc/sec He
• Cv (reported): 0.14 (table) / 0.08 (product spec)
• Valve seat materials: PU, PTFE, PCTFE
• Body / diaphragm material: Stainless steel 316L
• Pressure gauge: 2" stainless steel

Description
JW100 series semi-automatic changeover manifold with diaphragm valves is designed for continuous, safe delivery of high-pressure specialty gases in industrial and laboratory environments. The diaphragm valve isolates the gas path, minimizing leakage and contamination and providing low internal volume suitable for high-purity applications. The panel integrates regulators, gauges and changeover logic to maintain stable outlet pressure under varying inlet conditions up to 3000 psi.

Additional Notes
Suitable for twin high-pressure gas cylinders with automatic changeover and purging function. Constructed and tested for corrosion resistance; assembly and leak testing performed in clean workshop conditions. Typical use: laboratories, gas analysis, high-purity supply.

Product Specifications (listed)

• Max. inlet pressure: 3000 psi or 2200 psi
• Max. outlet pressure options: 25, 50, 100, 150, 250 psi
• Working temperature: -40°C to +74°C
• Leakage rate: 2 x 10-8 atm·cc/sec He
• Cv: 0.08–0.14 (depending on configuration)

Design Features

• Pressure regulators and piping pressure/leakage tested
• Equipped with relief valve for overpressure protection
• Clear 2" stainless steel pressure gauges
• Diaphragm valve knobs marked with ON/OFF
• Modular design for gas-specific options and remote monitoring

Material List

• Body material: Stainless steel 316L
• Diaphragm: Stainless steel 316L
• Valve seats: PU, PTFE, PCTFE
• Inlet / outlet connections: typically 1/4" NPT (F) (other options available)

Ordering Information (summary)
Series: JW100 semi-automatic changeover device. Function options: with/without purging, purging distribution, pressure sensor, automatic changeover. Connection options: 1/4" NPT(F) / 1/4" welding, 1/4" tube fitting / 1/4" NPT(M), 3/8" variants, etc. Body material codes: S = stainless, C = nickel plated, others on request. Input pressure codes: H = 3000 psi, M = 2200 psi, L = 1000 psi. Gas codes: -N2, O2, H2, C2H2, CH4, Ar, He, Air.

Technical specifications

• Model / Series: JW100
• Origin: Guangdong, China
• Certification: CE
• Max inlet pressure: up to 3000 psi (20.7 MPa)
• Outlet pressure ranges: 0–25 to 0–250 psig
• Operating temperature: -40°C to +74°C
• Leakage: 2 x 10-8 atm·cc/sec He
• Materials: 316L stainless steel, PU/PTFE/PCTFE seats
• Applications: semiconductor, pharmaceutical, chemical processing, laboratories, gas chromatography, laser systems, cleanrooms
