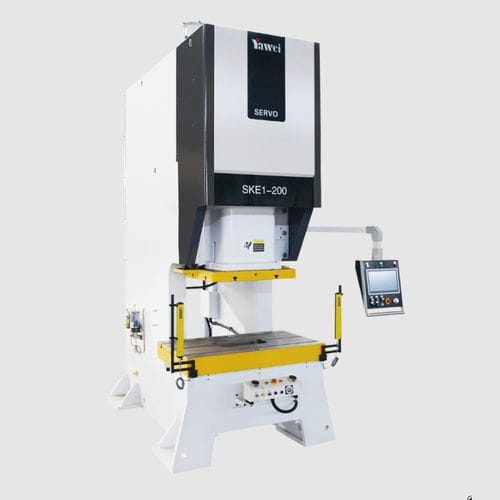

Motorized press SKE1 series

electricelectronicforming

Product description

• Equipped with a low-speed, high-torque dedicated servo motor for controlled forming and stamping.
• Programmable motion profiles allow on-the-fly setting and modification of stroke and velocity during production.
• Automatic bottom-dead-center (BDC) compensation with accuracy below 0.01 mm for precision stamping operations.
• Continuously adjustable slider running speed to tune production rate and process stability.
• Intelligent servo control reduces energy consumption and simplifies system maintenance.
• Programmable stroke height and motion sequence to support flexible production layouts and short series changeovers.
• Optimizable motion profiles to improve part quality and extend die life.
• Robust stamping performance with reduced machine shock and straightforward maintenance access.
• Handwheel fine‑tuning function to shorten die try‑out time.

Product parameters (per model)
SKE1-315
Nominal capacity: 3150 kN
Nominal capacity stroke: 8 mm
Slide stroke: 250 mm
Max no-load strokes per minute: 40 spm
Max die set height: 500 mm
Die height adjustment: 120 mm
Bottom area of slide (L/R+F/B) (I type): 1000×720×110 mm
Bottom area of slide (L/R+F/B) (II type): 1250×720×110 mm
Max top die weight: 1800 kg
Worktable size: 1650×880×180 mm
Air pressure: 0.6 MPa
Press precision: Japan JIS 1st class 1
Machine dimension (L×W×H): 1900×2850×4500 mm
Die cushion capacity: 236 kN
Die cushion stroke: 125 mm
Die cushion effective area: 550×535 mm²
Max torque value: 18000 N·m

SKE1-260
Nominal capacity: 2600 kN
Nominal capacity stroke: 7 mm
Slide stroke: 250 mm
Max no-load strokes per minute: 45 spm
Max die set height: 450 mm
Die height adjustment: 120 mm
Bottom area of slide (L/R+F/B) (I type): 920×700×100 mm
Bottom area of slide (L/R+F/B) (II type): 1250×700×100 mm
Max top die weight: 1800 kg
Worktable size: 1500×840×180 mm
Air pressure: 0.6 MPa
Press precision: Japan JIS 1st class 1
Machine dimension (L×W×H): 1810×2560×4325 mm
Die cushion capacity: 151 kN
Die cushion stroke: 120 mm
Die cushion effective area: 540×455 mm²
Max torque value: 14000 N·m

SKE1-200
Nominal capacity: 2000 kN
Nominal capacity stroke: 6 mm
Slide stroke: 200 mm
Max no-load strokes per minute: 50 spm
Max die set height: 460 mm
Die height adjustment: 110 mm
Bottom area of slide (L/R+F/B) (I type): 850×630×90 mm
Bottom area of slide (L/R+F/B) (II type): 1130×630×90 mm
Max top die weight: 1800 kg
Worktable size: 1400×820×160 mm
Air pressure: 0.6 MPa
Press precision: Japan JIS 1st class 1
Machine dimension (L×W×H): 1680×2420×4060 mm
Die cushion capacity: 122 kN
Die cushion stroke: 110 mm
Die cushion effective area: 540×395 mm²
Max torque value: 12000 N·m

SKE1-160
Nominal capacity: 1600 kN
Nominal capacity stroke: 6 mm
Slide stroke: 200 mm
Max no-load strokes per minute: 50 spm
Max die set height: 460 mm
Die height adjustment: 100 mm
Bottom area of slide (L/R+F/B) (I type): 700×550×90 mm
Bottom area of slide (L/R+F/B) (II type): 990×550×90 mm
Max top die weight: 1800 kg
Worktable size: 1250×800×140 mm
Air pressure: 0.6 MPa
Press precision: Japan JIS 1st class 1
Machine dimension (L×W×H): 1400×2300×3800 mm
Die cushion capacity: 100 kN
Die cushion stroke: 80 mm
Die cushion effective area: 650×420 mm²
Max torque value: 9000 N·m

SKE1-125
Nominal capacity: 1250 kN
Nominal capacity stroke: 6 mm
Slide stroke: 180 mm
Max no-load strokes per minute: 60 spm
Max die set height: 360 mm
Die height adjustment: 80 mm
Bottom area of slide (L/R+F/B) (I type): 650×470×80 mm
Bottom area of slide (L/R+F/B) (II type): 910×470×80 mm
Max top die weight: 800 kg
Worktable size: 1200×600×110 mm
Air pressure: 0.6 MPa
Press precision: Japan JIS 1st class 1
Machine dimension (L×W×H): 1300×1900×3200 mm
Die cushion capacity: 96 kN
Die cushion stroke: 90 mm
Die cushion effective area: 420×345 mm²
Max torque value: 6000 N·m

Technical features

• Series: SKE1 series
• Nominal capacity range (example models): from approx. 450 kN to 3150 kN
• Drive: dedicated low-speed, high-torque servo motor with programmable motion profiles
• Positioning/press precision: automatic BDC compensation below 0.01 mm; JIS 1st class 1 where specified
• Slider speed: continuously variable to support high-throughput operation (see model max strokes)
• Programmable stroke height and motion sequence for flexible production
• Handwheel fine adjustment to reduce die try-out time
