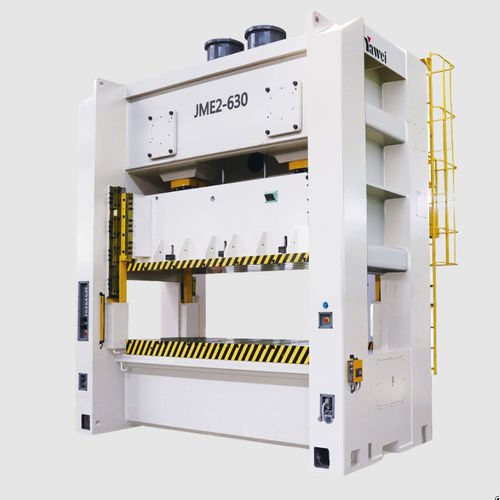

Motorized press JME2 series

electricformingstamping

Product Description

• Achieves JIS Level-1 precision for the entire machine.
• High-rigidity machine body with quality steel plate welding.
• Strong left and right anti-offset load capacity.
• Counteracts lateral forces through reverse rotation of dual eccentric shafts.
• Low noise.
• High-precision rectangular six-face extended guide rail.
• User-friendly human-machine interface, offering simple and convenient operation.

Product Parameters
Model: JME2-630
Norminal capacity: 6300kN
Norminal capacity stroke: Countertop(10mm), Large countertop(10mm)
Stroke of slide: Countertop(300mm), Large countertop(300mm)
Strokes per minute: Countertop(20-35 s.p.m), Large countertop(20-35 s.p.m)
Max die set height: Countertop(600mm), Large countertop(600mm)
Die height adjustment: 120mm
Bottom area of slide (L/R+F/B): Countertop(2840*1100mm), Large countertop(3200*1100mm)
Worktable size (L/R+F/B): Countertop(3100*1200mm), Large countertop(3300*1200mm)
Opening on uprights (F/B+U/D): Countertop(1000*700mm), Large countertop(1100*700mm)
Main motor power: 75Kw
Air pressure: 0.6Mpa
Press precision: Japan JIS 1st class 1

Model: JME2-500
Norminal capacity: 5000kN
Norminal capacity stroke: Countertop(10mm), Large countertop(10mm)
Stroke of slide: Countertop(300mm), Large countertop(300mm)
Strokes per minute: Countertop(20-35 s.p.m), Large countertop(20-25 s.p.m)
Max die set height: Countertop(600mm), Large countertop(600mm)
Die height adjustment: 120mm
Bottom area of slide (L/R+F/B): Countertop(2700*1100mm), Large countertop(3200*1100mm)
Worktable size (L/R+F/B): Countertop(2900*1200mm), Large countertop(3300*1200mm)
Opening on uprights (F/B+U/D): Countertop(1000*700mm), Large countertop(1100*700mm)
Main motor power: 55Kw
Air pressure: 0.6Mpa
Press precision: Japan JIS 1st class 1

Model: JME2-400
Norminal capacity: 4000kN
Norminal capacity stroke: Countertop(7mm), Large countertop(10mm)
Stroke of slide: Countertop(300mm), Large countertop(300mm)
Strokes per minute: Countertop(20-35 s.p.m), Large countertop(15-25 s.p.m)
Max die set height: Countertop(550mm), Large countertop(550mm)
Die height adjustment: 120mm
Bottom area of slide (L/R+F/B): Countertop(2720*1000mm), Large countertop(3100*1000mm)
Worktable size (L/R+F/B): Countertop(1600*750mm), Large countertop(3300*1100mm)
Opening on uprights (F/B+U/D): Countertop(600*400mm), Large countertop(900*600mm)
Main motor power: 37Kw
Air pressure: 0.6Mpa
Press precision: Japan JIS 1st class 1

Model: JME2-315
Norminal capacity: 3150kN
Norminal capacity stroke: V(7mm), H(3mm)
Stroke of slide: V(300mm), H(170mm)
Strokes per minute: V(20-35 s.p.m), H(30-50 s.p.m)
Max die set height: V(550mm), H(450mm)
Die height adjustment: 120mm
Bottom area of slide (L/R+F/B): 2450*900mm
Worktable size (L/R+F/B): 2550*1000mm
Opening on uprights (F/B+U/D): 900*600mm
Main motor power: 30Kw
Air pressure: 0.6Mpa
Press precision: Japan JIS 1st class 1

Model: JME2-260
Norminal capacity: 2600kN
Norminal capacity stroke: V(7mm), H(3mm)
Stroke of slide: V(280mm), H(170mm)
Strokes per minute: V(20-40 s.p.m), H(30-60 s.p.m)
Max die set height: V(550mm), H(450mm)
Die height adjustment: 120mm
Bottom area of slide (L/R+F/B): 2450*900mm
Worktable size (L/R+F/B): 2550*1000mm
Opening on uprights (F/B+U/D): 900*600mm
Main motor power: 30Kw
Air pressure: 0.6Mpa
Press precision: Japan JIS 1st class 1

Caractéristiques / spécifications techniques

• Precision standard: Japan JIS 1st class (machine-level press precision).
• Structure: High-rigidity welded steel plate machine body.
• Guides: High-precision rectangular six-face extended guide rail.
• Drive / balance: Dual eccentric shafts with reverse rotation to counteract lateral forces and provide strong left/right anti-offset load capacity.
• Operation: User-friendly human-machine interface for simple and convenient operation.
• Operating medium: Air pressure requirement 0.6Mpa (typical across models).
• Available models/specifications: JME2-630, JME2-500, JME2-400, JME2-315, JME2-260 (see model-specific parameters above).
