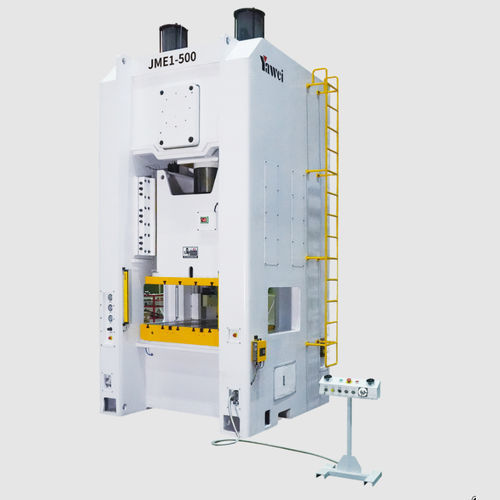

Motorized press JME1 series

electromechanicalstampingPLC-controlled

Overview

• Machine-level press precision meeting Japan JIS 1st class.
• High-rigidity welded steel plate frame.
• Low noise and minimal stamping deformation.
• Compatible with multi-axis variable-speed drives and automation line integration.
• User-friendly HMI for straightforward operation.

Available models

• JME1-630
• JME1-500
• JME1-400
• JME1-315
• JME1-260

Product parameters
JME1-630
Nominal force: 6300 kN
Nominal force stroke: 7 mm
Slide stroke: 300 mm
Strokes per minute: 20–30 spm
Max die set height: 650 mm
Die height adjustment: 150 mm
Bottom area of slide (L/R × F/B): 1400×900 mm
Worktable size (L/R × F/B × thickness): 1500×1100×220 mm
Opening on uprights (F/B × U/D): 1000×600 mm
Main motor power: 55 kW
Air pressure: 0.6 MPa
Press precision: Japan JIS 1st class 1


JME1-500
Nominal force: 5000 kN
Nominal force stroke: 7 mm
Slide stroke: 300 mm
Strokes per minute: 20–35 spm
Max die set height: 650 mm
Die height adjustment: 150 mm
Bottom area of slide (L/R × F/B): 1400×900 mm
Worktable size (L/R × F/B × thickness): 1500×1100×220 mm
Opening on uprights (F/B × U/D): 1000×600 mm
Main motor power: 45 kW
Air pressure: 0.6 MPa
Press precision: Japan JIS 1st class 1


JME1-400
Nominal force: 4000 kN
Nominal force stroke: 7 mm
Slide stroke: 300 mm
Strokes per minute: 20–40 spm
Max die set height: 600 mm
Die height adjustment: 150 mm
Bottom area of slide (L/R × F/B): 1400×900 mm
Worktable size (L/R × F/B × thickness): 1500×1100×220 mm
Opening on uprights (F/B × U/D): 900×600 mm
Main motor power: 37 kW
Air pressure: 0.6 MPa
Press precision: Japan JIS 1st class 1


JME1-315
Nominal force: 3150 kN
Nominal force stroke: 7 mm
Slide stroke: 250 mm
Strokes per minute: 20–40 spm
Max die set height: 550 mm
Die height adjustment: 120 mm
Bottom area of slide (L/R × F/B): 1100×750 mm
Worktable size (L/R × F/B × thickness): 1250×900×200 mm
Opening on uprights (F/B × U/D): 800×600 mm
Main motor power: 30 kW
Air pressure: 0.6 MPa
Press precision: Japan JIS 1st class 1


JME1-260
Nominal force: 2600 kN
Nominal force stroke: 7 mm
Slide stroke: 250 mm
Strokes per minute: 20–40 spm
Max die set height: 550 mm
Die height adjustment: 120 mm
Bottom area of slide (L/R × F/B): 1100×700 mm
Worktable size (L/R × F/B × thickness): 1250×850×180 mm
Opening on uprights (F/B × U/D): 750×550 mm
Main motor power: 22 kW
Air pressure: 0.6 MPa
Press precision: Japan JIS 1st class 1


Features / technical specifications

• Press precision: Japan JIS 1st class (machine-level precision).
• Frame: welded high-rigidity steel plate construction.
• Stamping performance: low noise and minimal stamping deformation.
• Drive & automation: supports multi-axis variable-speed drives and automation line integration.
• Control: user-friendly HMI for straightforward operation and maintenance.
• Standard working air pressure: 0.6 MPa.
