Mechanical press JKE1 series
stampingfor sheet metalC-frame

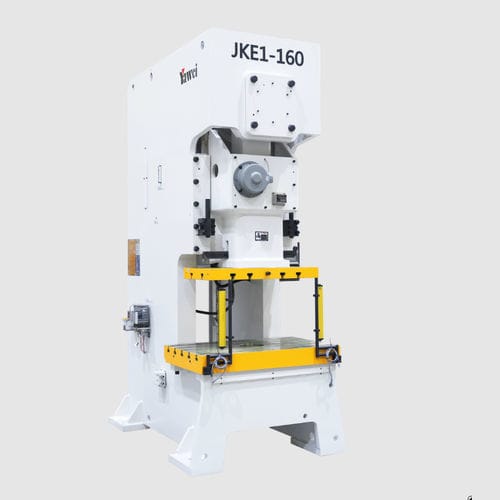

Mechanical press - JKE1 series - JIANGSU YAWEI MACHINE TOOL - stamping / for sheet metal / C-frame
Mechanical press - JKE1 series - JIANGSU YAWEI MACHINE TOOL - stamping / for sheet metal / C-frame
Add to favorites
Compare this product

Characteristics

Operation
mechanical
Function
stamping
Applications
for sheet metal
Structure
C-frame
Other characteristics
high precision
Force

Max.: 407.9 tf

Min.: 163.26 tf

Opening

Max.: 550 mm
(22 in)

Min.: 400 mm
(16 in)

Rate (strokes/min)

Max.: 100 p/min

Min.: 20 p/min

Stroke

Max.: 280 mm
(11.024 in)

Min.: 80 mm
(3.15 in)

Table width

Max.: 900 mm
(35 in)

Min.: 760 mm
(30 in)

Table length

Max.: 1,750 mm
(69 in)

Min.: 1,250 mm
(49 in)

Hydraulic pump power

Max.: 37 kW

Min.: 11 kW

Overall length

Max.: 190 cm
(75 in)

Min.: 148 cm
(58 in)

Overall width

Max.: 285 cm
(112 in)

Min.: 210 cm
(83 in)

Overall height

Max.: 470 cm
(185 in)

Min.: 340 cm
(134 in)

Description

Product Description
  • Achieves JIS Level-1 precision for the entire machine.
  • High-rigidity machine body with quality steel plate welding.
  • Low noise operation.
  • Minimal stamping deformation.
  • Rectangular extended six-sided guide rail.
  • User-friendly human-machine interface, offering simple and convenient operation.

Available Models
  • JKE1-160
  • JKE1-200
  • JKE1-260
  • JKE1-315
  • JKE1-400

Product Parameters - JKE1-160
Norminal capacity: 1600KN
Norminal capacity stroke: V(6mm), H(4mm)
Stroke of slide: V(200mm), H(80mm)
Strokes per minute: V(25-50spm), H(50-100spm)
Max die set height: V(400mm), H(460mm)
Die height adjustment: 100mm
Bottom area of slide (I type): 700 ×580×90mm
Bottom area of slide (II type): 990 ×580×90mm
Max top die weight: 540kg
Worktable size (L/R+F/B): 1250 ×760×150mm
Main motor power: 11KW
Air pressure: 0.6Mpa
Press precision: Japan JIS 1st class 1
Machine dimension: 1478 ×2100×3400mm
Die cushion capacity: 100KN
Die cushion stroke: 80mm
Die cushion effective area: 660 ×420mm²

Product Parameters - JKE1-200
Norminal capacity: 2000KN
Norminal capacity stroke: V(6mm), H(4mm)
Stroke of slide: V(200mm), H(100mm)
Strokes per minute: V(25-50spm), H(45-80spm)
Max die set height: V(450mm), H(500mm)
Die height adjustment: 110mm
Bottom area of slide (I type): 850 ×650×90mm
Bottom area of slide (II type): 1130 ×650×90mm
Max top die weight: 800kg
Worktable size (L/R+F/B): 1400 ×820×160mm
Main motor power: 15KW
Air pressure: 0.6Mpa
Press precision: Japan JIS 1st class 1
Machine dimension: 1620 ×2350×3700mm
Die cushion capacity: 140KN
Die cushion stroke: 100mm
Die cushion effective area: 660 ×460mm²

Product Parameters - JKE1-260
Norminal capacity: 2600KN
Norminal capacity stroke: V(6.5mm), H(4mm)
Stroke of slide: V(250mm), H(100mm)
Strokes per minute: V(20-40spm), H(40-70spm)
Max die set height: V(450mm), H(525mm)
Die height adjustment: 120mm
Bottom area of slide (I type): 900 ×700×100mm
Bottom area of slide (II type): 1130 ×700×100mm
Max top die weight: 800kg
Worktable size (L/R+F/B): 1550 ×840×180mm
Main motor power: 22KW
Air pressure: 0.6Mpa
Press precision: Japan JIS 1st class 1
Machine dimension: 1760 ×2400×4200mm
Die cushion capacity: 140KN
Die cushion stroke: 100mm
Die cushion effective area: 660 ×460mm²

Product Parameters - JKE1-315
Norminal capacity: 3150KN
Norminal capacity stroke: V(8mm), H(6mm)
Stroke of slide: V(250mm), H(100mm)
Strokes per minute: V(20-40spm), H(30-50spm)
Max die set height: V(500mm), H(575mm)
Die height adjustment: 120mm
Bottom area of slide (I type): 1000 ×720×100mm
Max top die weight: 800kg
Worktable size (L/R+F/B): 1650 ×880×180mm
Main motor power: 30KW
Air pressure: 0.6Mpa
Press precision: Japan JIS 1st class 1
Machine dimension: 1900 ×2850×4500mm
Die cushion capacity: 160KN
Die cushion stroke: 110mm
Die cushion effective area: 700 ×460mm²

Product Parameters - JKE1-400
Norminal capacity: 4000KN
Norminal capacity stroke: 8mm
Stroke of slide: 280mm
Strokes per minute: 20-35spm
Max die set height: 550mm
Die height adjustment: 120mm
Bottom area of slide (I type): 1130 ×750×110mm
Max top die weight: 800kg
Worktable size (L/R+F/B): 1750 ×900×200mm
Main motor power: 37KW
Air pressure: 0.6Mpa
Press precision: Japan JIS 1st class 1
Machine dimension: 1740 ×2730×4695mm
Die cushion capacity: 140KN
Die cushion stroke: 100mm
Die cushion effective area: 810 ×480mm²

Caractéristiques / Spécifications techniques
  • Precision standard: Japan JIS 1st class 1 (machine-level precision).
  • Air pressure required: 0.6Mpa.
  • Main motor power (varies by model): 11KW (JKE1-160), 15KW (JKE1-200), 22KW (JKE1-260), 30KW (JKE1-315), 37KW (JKE1-400).
  • Die cushion capacity & stroke vary by model (examples: 100KN/80mm for JKE1-160; 140KN/100mm for JKE1-200/260; 160KN/110mm for JKE1-315).
  • Multiple model options (JKE1 series) to cover nominal capacities from 1600KN up to 4000KN.
  • High-rigidity welded steel body and rectangular six-sided guide rail for reduced stamping deformation and low noise.
  • User-friendly human-machine interface for simple operation.
