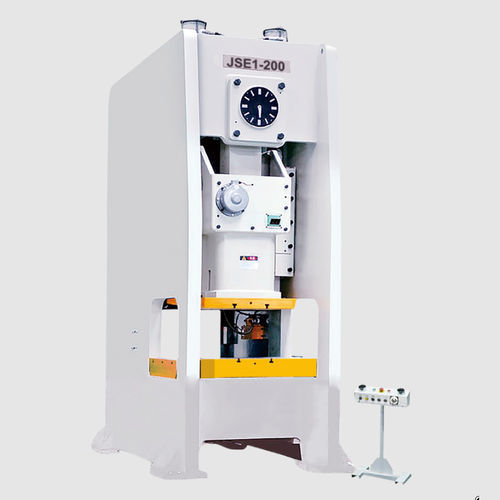

Mechanical press JSE1 series

for sheet metalframefixed

Product description

• Achieves JIS Level-1 precision for the entire machine.
• High-rigidity welded steel plate frame.
• Low-inertia high-performance combination clutch and brake unit.
• Low-noise operation.
• Minimal die-height variation and small dynamic center deviation.
• Low overall clearance.
• Fixed-lock six-sided guide rails.
• User-friendly human–machine interface for simple, convenient operation.

Available models

• JSE1-315
• JSE1-260
• JSE1-200
• JSE1-160
• JSE1-110

JSE1-315 - Key Parameters
Nominal capacity: 3150 kN
Nominal capacity stroke: 7 mm
Stroke of slide: 300 mm
Strokes per minute: 20–35 spm
Max die set height: 550 mm
Die height adjustment: 120 mm
Max top die weight: 900 kg
Bottom area of slide (L/R+F/B): 1400*900*100 mm
Worktable size (L/R+F/B): 1600*1000*180 mm
Opening on uprights (F/B+U/D): 1100*750 mm
Main motor power: 30 kW
Air pressure: 0.6 Mpa
Press precision: Japan JIS Class 1
Machine dimension: 2308*2945*4525 mm
Die cushion capacity: 60 kN
Die cushion stroke: 70 mm
Die cushion effective area: 410*260 mm^2


JSE1-260 - Key Parameters
Nominal capacity: 2600 kN
Nominal capacity stroke: V(6 mm), H(4 mm)
Stroke of slide: V(250 mm), H(100 mm)
Strokes per minute: V(20–40 spm), H(40–75 spm)
Max die set height: V(500 mm), H(460 mm)
Die height adjustment: 120 mm
Max top die weight: 800 kg
Bottom area of slide (L/R+F/B): 920*700*100 mm
Worktable size (L/R+F/B): V(1300*900*180 mm), H(1300*700*180 mm)
Opening on uprights (F/B+U/D): V(950*660 mm), H(750*620 mm)
Main motor power: 22 kW
Air pressure: 0.6 Mpa
Press precision: Japan JIS Class 1
Machine dimension: 1978*2755*4490 mm
Die cushion capacity: 140 kN
Die cushion stroke: 100 mm
Die cushion effective area: 700*470 mm^2


JSE1-200 - Key Parameters
Nominal capacity: 2000 kN
Nominal capacity stroke: V(6 mm), H(4 mm)
Stroke of slide: V(200 mm), H(150 mm)
Strokes per minute: V(20–45 spm), H(35–70 spm)
Max die set height: V(450 mm), H(410 mm)
Die height adjustment: 110 mm
Max top die weight: 800 kg
Bottom area of slide (L/R+F/B): 850*650*90 mm
Worktable size (L/R+F/B): V(1150*850*160 mm), H(1150*650*160 mm)
Opening on uprights (F/B+U/D): V(900*610 mm), H(700*570 mm)
Main motor power: 15 kW
Air pressure: 0.6 Mpa
Press precision: Japan JIS Class 1
Machine dimension: 1788*2590*4010 mm
Die cushion capacity: 140 kN
Die cushion stroke: 100 mm
Die cushion effective area: 640*470 mm^2


JSE1-160 - Key Parameters
Nominal capacity: 1600 kN
Nominal capacity stroke: V(6 mm), H(4 mm)
Stroke of slide: V(200 mm), H(80 mm)
Strokes per minute: V(25–50 spm), H(50–100 spm)
Max die set height: V(450 mm), H(350 mm)
Die height adjustment: 100 mm
Max top die weight: 700 kg
Bottom area of slide (L/R+F/B): 700*580*90 mm
Worktable size (L/R+F/B): V(1000*750*140 mm), H(1000*580*140 mm)
Opening on uprights (F/B+U/D): V(800*560 mm), H(630*510 mm)
Main motor power: 11 kW
Air pressure: 0.6 Mpa
Press precision: Japan JIS Class 1
Machine dimension: 1617*2290*3420 mm
Die cushion capacity: 100 kN
Die cushion stroke: 80 mm
Die cushion effective area: 540*350 mm^2


JSE1-110 - Key Parameters
Nominal capacity: 1100 kN
Nominal capacity stroke: V(5 mm), H(3 mm)
Stroke of slide: V(180 mm), H(110 mm)
Strokes per minute: V(30–65 spm), H(50–100 spm)
Max die set height: V(350 mm), H(320 mm)
Die height adjustment: 90 mm
Max top die weight: 450 kg
Bottom area of slide (L/R+F/B): 650*520*80 mm
Worktable size (L/R+F/B): V(900*700*110 mm), H(900*520*110 mm)
Opening on uprights (F/B+U/D): V(750*500 mm), H(570*470 mm)
Main motor power: 7.5 kW
Air pressure: 0.6 Mpa
Press precision: Japan JIS Class 1
Machine dimension: 1488*2040*3125 mm
Die cushion capacity: 80 kN
Die cushion stroke: 80 mm
Die cushion effective area: 500*300 mm^2


Features / Technical specifications (summary)

• Model family: JSE1 series
• Precision standard: Japan JIS Class 1
• Air pressure (standard): 0.6 Mpa
• Slide stroke range: 150 mm to 300 mm (depending on model)
• Main motor power range: 7.5 kW to 30 kW (depending on model)
• Die cushion capacity range: 60 kN to 151 kN (depending on model)
