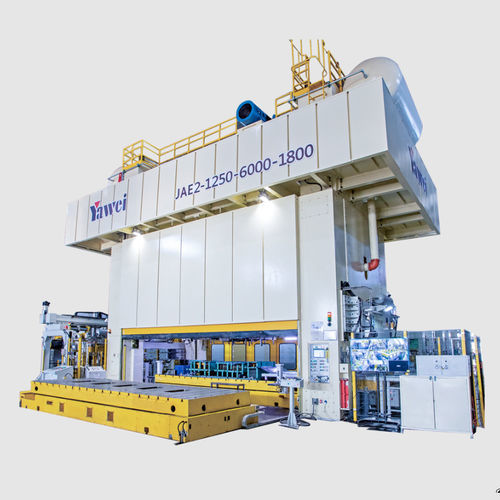

Mechanical press JAE2 series

formingdrawingfor sheet metal

Product overview

• Close-type double-point mechanical press designed for progressive stamping and heavy forming operations
• Modular, standardized design with large welded steel components and stress-relief annealing
• High-rigidity structure verified by finite element analysis
• Guide-column and guide-bushing arrangement with eccentric gear reverse rotation
• Gear stages: herringbone teeth for high-speed, straight/grind teeth for low-speed
• Thin-oil automatic circulation lubrication and long four‑corner eight‑face guide rails
• Large-torque, low-inertia pneumatic clutch and brake; options for customization

Available models

• JAE2-400
• JAE2-500
• JAE2-630
• JAE2-800
• JAE2-1000
• JAE2-1250
• JAE2-1600

Technical parameters — JAE2-400
Nominal force: 4000 kN
Nominal force stroke: 13 mm
Slider stroke length: 500 mm
Slider stroke frequency: 8–18 times/min
Maximum die setting height: 1200 mm
Die setting height adjustment: 500 mm
Worktable L×W (left–right × front–rear): 3600 mm × 1800 mm
Stretch pad edge press/eject force: 800 kN
Stretch pad stroke: 20–150 mm
Movable workbench movement: forward/backward

Technical parameters — JAE2-500
Nominal force: 5000 kN
Nominal force stroke: 13 mm
Slider stroke length: 500 mm
Slider stroke frequency: 8–18 times/min
Maximum die setting height: 1200 mm
Die setting height adjustment: 500 mm
Worktable L×W: 3600 mm × 1800 mm
Stretch pad edge press/eject force: 1000 kN
Stretch pad stroke: 20–150 mm
Movable workbench movement: forward/backward

Technical parameters — JAE2-630
Nominal force: 6300 kN
Nominal force stroke: 13 mm
Slider stroke length: 500 mm
Slider stroke frequency: 8–18 times/min
Maximum die setting height: 1200 mm
Die setting height adjustment: 500 mm
Worktable L×W: 3600 mm × 1800 mm
Stretch pad edge press/eject force: 1200 kN
Stretch pad stroke: 20–150 mm
Movable workbench movement: forward/backward

Technical parameters — JAE2-800
Nominal force: 8000 kN
Nominal force stroke: 13 mm
Slider stroke length: 500 mm
Slider stroke frequency: 8–18 times/min
Maximum die setting height: 1200 mm
Die setting height adjustment: 500 mm
Worktable L×W: 4000 mm × 1800 mm
Stretch pad edge press/eject force: 1500 kN
Stretch pad stroke: 20–150 mm
Movable workbench movement: forward/backward

Technical parameters — JAE2-1000
Nominal force: 10000 kN
Nominal force stroke: 13 mm
Slider stroke length: 600 mm
Slider stroke frequency: 8–18 times/min
Maximum die setting height: 1200 mm
Die setting height adjustment: 500 mm
Worktable L×W: 4000 mm × 1800 mm
Stretch pad edge press/eject force: 1500 kN
Stretch pad stroke: 20–200 mm
Movable workbench movement: forward/backward

Technical parameters — JAE2-1250
Nominal force: 12500 kN
Nominal force stroke: 13 mm
Slider stroke length: 600 mm
Slider stroke frequency: 8–18 times/min
Maximum die setting height: 1200 mm
Die setting height adjustment: 500 mm
Worktable L×W: 4500 mm × 1800 mm
Stretch pad edge press/eject force: 1500 kN
Stretch pad stroke: 20–200 mm
Movable workbench movement: forward/backward

Technical parameters — JAE2-1600
Nominal force: 16000 kN
Nominal force stroke: 13 mm
Slider stroke length: 800 mm
Slider stroke frequency: 8–18 times/min
Maximum die setting height: 1200 mm
Die setting height adjustment: 500 mm
Worktable L×W: 5000 mm × 1800 mm
Stretch pad edge press/eject force: 2000 kN
Stretch pad stroke: 20–250 mm
Movable workbench movement: forward/backward

General specifications

• Series: JAE2
• Nominal force range: 4000 kN – 16000 kN
• Nominal force stroke (all models): 13 mm
• Slider stroke length: typically 500–800 mm depending on model
• Stroke frequency: 8–18 times/min
• Maximum die setting height: 1200 mm; adjustment: 500 mm
• Worktable dimensions vary by model (3600–5000 mm × 1800 mm)
• Features: welded large parts with annealing, precision guide rails, thin-oil circulating lubrication, pneumatic clutch/brake

Notes
Parameters listed are standard model data. Contact supplier for application-specific configurations, tooling interfaces and optional equipment.
