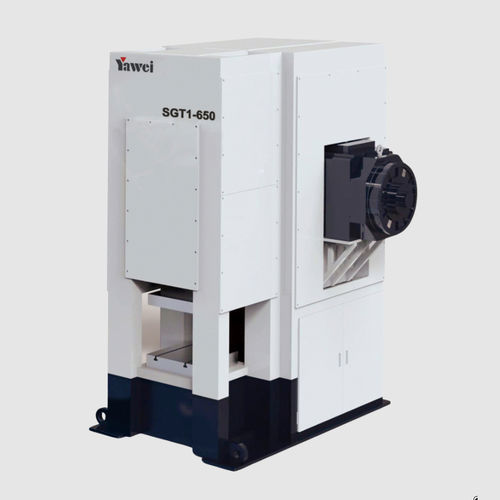

Mechanical press SGT1 series

formingtoggleuniversal

Product description

• Universal, standardized and modular design for flexible configuration and maintenance
• Large components are all-steel welded with weld inspection and annealing for stress relief
• High-rigidity frame achieving product rigidity in the range of 1/16000–1/20000
• High-performance machining with minimal clearances; accuracy conforms to specialized standards
• Herringbone tooth grinding process delivering 6-level gear accuracy
• Thin-oil automatic circulation lubrication system
• High-precision four-angle eight-sided ultra-long guide rails for improved positioning and repeatability
• High-sensitivity overload protection device to safeguard the die under abnormal loads
• Toggle pressure holding device enabling high-precision forming
• Optional three-station jacking device available for continuous processing

Product parameters
SGT1-400
Nominal force: 4000 kN
Nominal force stroke: 3 mm
Slider stroke length: 200 mm
Slider stroke frequency: 50 strokes/min
Maximum die setting height: 450 mm
Die setting height adjustment: 50 mm
Working table left-right dimensions: 700×500 mm
Front-rear dimensions of workbench: 700×600 mm
Lower top (ejection) force: 200 kN
Lower top (ejection) stroke: 100 mm

SGT1-650
Nominal force: 6500 kN
Nominal force stroke: 3 mm
Slider stroke length: 250 mm
Slider stroke frequency: 40 strokes/min
Maximum die setting height: 550 mm
Die setting height adjustment: 50 mm
Working table left-right dimensions: 800×750 mm
Front-rear dimensions of workbench: 800×750 mm
Lower top (ejection) force: 320 kN
Lower top (ejection) stroke: 100 mm

SGT1-800
Nominal force: 8000 kN
Nominal force stroke: 3 mm
Slider stroke length: 250 mm
Slider stroke frequency: 40 strokes/min
Maximum die setting height: 650 mm
Die setting height adjustment: 50 mm
Working table left-right dimensions: 950×900 mm
Front-rear dimensions of workbench: 950×900 mm
Lower top (ejection) force: 400 kN
Lower top (ejection) stroke: 100 mm

SGT1-1000
Nominal force: 10000 kN
Nominal force stroke: 3 mm
Slider stroke length: 280 mm
Slider stroke frequency: 40 strokes/min
Maximum die setting height: 650 mm
Die setting height adjustment: 50 mm
Working table left-right dimensions: 1000×900 mm
Front-rear dimensions of workbench: 1000×900 mm
Lower top (ejection) force: 500 kN
Lower top (ejection) stroke: 110 mm

SGT1-1250
Nominal force: 12500 kN
Nominal force stroke: 8 mm
Slider stroke length: 250 mm
Slider stroke frequency: 30 strokes/min
Maximum die setting height: 680 mm
Die setting height adjustment: 50 mm
Working table left-right dimensions: 1800×1600 mm
Front-rear dimensions of workbench: 1800×1600 mm
Lower top (ejection) force: 600 kN
Lower top (ejection) stroke: 110 mm

SGT1-1600
Nominal force: 16000 kN
Nominal force stroke: 8 mm
Slider stroke length: 230 mm
Slider stroke frequency: 30 strokes/min
Maximum die setting height: 700 mm
Die setting height adjustment: 50 mm
Working table left-right dimensions: 1800×1600 mm
Front-rear dimensions of workbench: 1800×1600 mm
Lower top (ejection) force: 650 kN
Lower top (ejection) stroke: 110 mm

Characteristics / Technical specifications

• SGT1 series with multiple model variants (SGT1-400 to SGT1-1600)
• All-steel welded large components with weld inspection and annealing to relieve stress
• High-rigidity frame (approx. 1/16000–1/20000) for precision forming
• Herringbone tooth grinding process for high gear accuracy (6-level)
• Thin-oil automatic circulation lubrication for stable long-term operation
• High-precision guide rails and ultra-long guidance to improve positioning and repeatability
• Overload protection device to protect die and machine under abnormal loads
• Toggle pressure holding device to support high-precision forming
• Optional three-station jacking device for continuous processing
• Model-specific capabilities: nominal force, slider stroke, stroke length, frequency, die setting height and adjustment, workbench dimensions, lower-top ejection force and stroke
