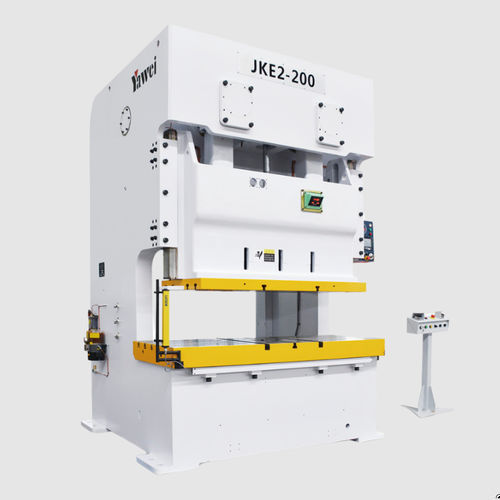

Mechanical press JKE2 series

formingfor sheet metalframe

Product overview

• JKE2 series C-frame double-crank mechanical presses delivering JIS Level-1 accuracy across the machine.
• High-rigidity welded steel plate frame with extended rectangular six-face guide rails for improved positioning and forming precision.
• Dual eccentric shafts rotate in reverse to counter lateral forces and provide strong left/right anti-offset capacity; designed for stable, low-noise operation.
• User-friendly human-machine interface for straightforward setup and operation; air pressure requirement 0.6 MPa.

Product Parameter - JKE2-315
Nominal capacity: 3150 kN
Nominal capacity stroke: V 7 mm, H 3.5 mm
Slide stroke: V 300 mm, H 170 mm
Strokes per minute: V 20–35 spm, H 30–50 spm
Max die set height: V 550 mm, H 615 mm
Die height adjustment: 120 mm
Upper worktable (L×F×H): 2100 × 700 × 95 mm
Lower worktable (L×F×H): 2750 × 900 × 190 mm
Main motor power: 30 kW
Air pressure: 0.6 MPa
Press precision: Japan JIS Level 1
Machine dimension (L×W×H): 3010 × 2545 × 4689 mm
Die cushion roof area: 640 × 470 (2 groups) mm²

Product Parameter - JKE2-260
Nominal capacity: 2600 kN
Nominal capacity stroke: V 7 mm, H 3.5 mm
Slide stroke: V 280 mm, H 170 mm
Strokes per minute: V 20–35 spm, H 30–60 spm
Max die set height: V 550 mm, H 605 mm
Die height adjustment: 120 mm
Upper worktable (L×F×H): 2100 × 700 × 95 mm
Lower worktable (L×F×H): 2700 × 900 × 710 mm
Main motor power: 22 kW
Air pressure: 0.6 MPa
Press precision: Japan JIS Level 1
Machine dimension (L×W×H): 3000 × 2545 × 4304 mm
Die cushion roof area: 640 × 470 (2 groups) mm²

Product Parameter - JKE2-200
Nominal capacity: 2000 kN
Nominal capacity stroke: V 6 mm, H 3 mm
Slide stroke: V 250 mm, H 150 mm
Strokes per minute: V 25–45 spm, H 35–70 spm
Max die set height: V 500 mm, H 550 mm
Die height adjustment: 120 mm
Upper worktable (L×F×H): 1850 × 650 × 95 mm
Lower worktable (L×F×H): 2400 × 840 × 170 mm
Main motor power: 18.5 kW
Air pressure: 0.6 MPa
Press precision: Japan JIS Level 1
Machine dimension (L×W×H): 2620 × 2235 × 3849 mm
Die cushion roof area: 640 × 470 (2 groups) mm²

Product Parameter - JKE2-160
Nominal capacity: 1600 kN
Nominal capacity stroke: V 6 mm, H 3 mm
Slide stroke: V 200 mm, H 130 mm
Strokes per minute: V 35–55 spm, H 40–85 spm
Max die set height: V 450 mm, H 485 mm
Die height adjustment: 100 mm
Upper worktable (L×F×H): 1600 × 550 × 70 mm
Lower worktable (L×F×H): 2000 × 760 × 150 mm
Main motor power: 15 kW
Air pressure: 0.6 MPa
Press precision: Japan JIS Level 1
Machine dimension (L×W×H): 2200 × 1940 × 3709 mm
Die cushion roof area: 540 × 350 (2 groups) mm²

Product Parameter - JKE2-110
Nominal capacity: 1100 kN
Nominal capacity stroke: V 5 mm, H 3 mm
Slide stroke: V 180 mm, H 110 mm
Strokes per minute: V 35–65 spm, H 50–100 spm
Max die set height: V 400 mm, H 435 mm
Die height adjustment: 100 mm
Upper worktable (L×F×H): 1400 × 500 × 70 mm
Lower worktable (L×F×H): 1800 × 650 × 130 mm
Main motor power: 11 kW
Air pressure: 0.6 MPa
Press precision: Japan JIS Level 1
Machine dimension (L×W×H): 2000 × 1745 × 3059 mm
Die cushion roof area: 350 × 235 (2 groups) mm²

Features / Technical specifications

• Series: JKE2 (models JKE2-110, -160, -200, -260, -315)
• Precision: Japan JIS Level 1 for full machine
• Structure: High-rigidity welded steel plate frame; rectangular six-face extended guide rails
• Anti-offset: Strong left/right anti-offset capacity via reverse rotation of dual eccentric shafts
• Operation: Intuitive human‑machine interface for setup and control
• Air pressure requirement: 0.6 MPa (all models)
• Die height adjustment: 100 mm or 120 mm depending on model
• Main motor power: 11–30 kW depending on model
