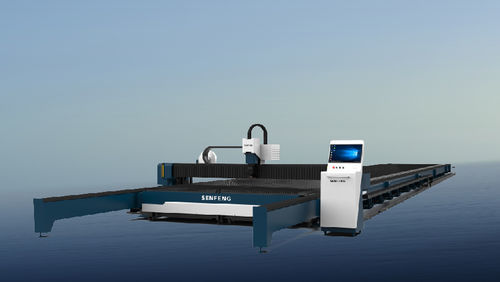

Fiber laser cutting machine SF12030R/SF20040R

for metal

Overview
The ultra-large-format fiber laser cutting machine SF20040R from SENFENG LASER handles very large sheets with configurable bed lengths from 6 m up to 32 m and widths up to 5 m. Designed for precision cutting of large components used in aerospace, steel structure and construction, it supports full-panel and batch processing to improve productivity.

Highlights

• Ultra-large work area: customizable bed length 6,000–32,000 mm and widths up to 5,000 mm to accommodate large-piece processing.
• Laser power options: 6–60 kW available to match material types and thicknesses.
• Super-thick cutting capability: up to and beyond 50 mm depending on configuration.
• Spliced modular hollow bed for transportable sections, on-site assembly and uniform heat distribution.
• Dual dust removal system with zoned exhaust and large-diameter side evacuation for efficient smoke extraction.
• Optional crossbeam protective cover to reduce stray laser emission and improve dust control.
• Safety: laser light curtain on the beam to stop the machine when personnel enter the processing area.
• Optimized for full-panel cutting and batch production to reduce plate changeover time.

Product Images & Media
Primary and secondary images illustrate machine layout, spliced bed, crossbeam, control panel and application examples.

Technical specifications

• Model: SF20040R (also SF6030R / SF12030R)
• Working area (mm): examples 6000×3000 / 12000×3000 / 20000×4000
• Laser Power (kW): optional 6 / 8 / 12 / 15 / 20 / 30 / 40 / 50 / 60
• Maximum speed: 100 m/min
• X/Y axis positioning accuracy: ±0.1 mm / 10,000 mm
• X/Y axis repeated positioning accuracy: ±0.05 mm
