Sheet metal production line

automaticcontinuouslaser

Description

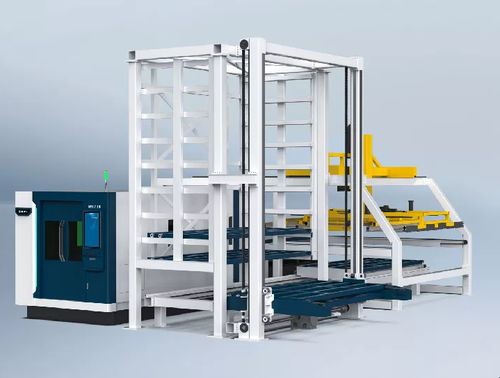

Automated production line for loading and unloading metal sheets enabling unmanned continuous operation. The system integrates a storage warehouse, an intelligent dust-removal partition, pallet truck and other auxiliary equipment. It is designed to connect to one or multiple laser cutting machines to form an automated cutting cell with coordinated material handling and process control.

Advantages

• Real-time monitoring: built-in camera to monitor the whole process
• Automatic feeding: automatic loading and unloading for unmanned continuous operation
• Auto oil-filling: intelligent system for automatic oil filling to prevent oil interruption

Technical specifications

• Storage Unit - Number of Layers of Pallet Racks: 8
• Storage Unit - Layer-to-layer Height (mm): 360
• Storage Unit - Stack-up Height of Each Layer (mm): 280 (with wooden pallet)
• Storage Unit - Carrying Capacity of Each Layer (kg): 3000
• Loading & Unloading Unit - Running Speed of Trolley (m/min): 2-15
• Loading & Unloading Unit - Lifting/Translation Speed of Mechanical Arm (m/min): 12/60
• Loading & Unloading Unit - Warehouse-in/out Speed (m/min): 10
• Cutting Unit - Laser Power (kW): 6
• Cutting Unit - Max Size of Sheet (mm): 3000*1500
• Cutting Unit - Min Size of Sheet (mm): 800*800
• Cutting Unit - Sheet Thickness (mm): 0.8-12
• Cutting Unit - X/Y-axis Positioning/Repositioning Accuracy (mm): ±0.05/±0.02
• Cutting Unit - Max No-load Speed (m/min): 130
• Cutting Unit - Max Load of Platforms (kg): 2000
