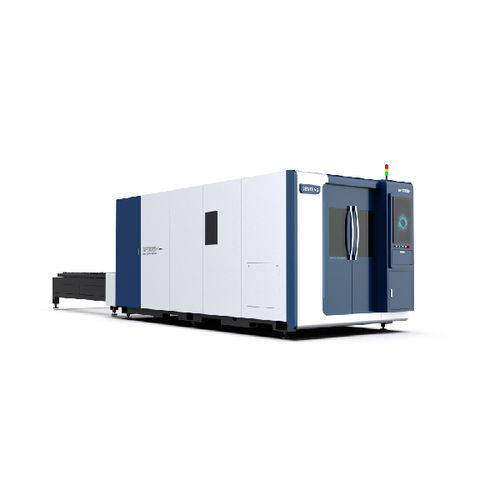

Fiber laser cutting machine SF3015H

for aluminumfor stainless steelfor brass

Product Overview
SF3015H (C Generation) is a CE (TUV), FDA and ETL certified fiber laser sheet cutting machine designed for industrial sheet-metal processing. It features a fiber laser source, two exchangeable worktables for continuous production, and laser power options from 1.5 kW to 12 kW. Depending on configuration, the machine can cut carbon steel up to approximately 30 mm.

Key Features

• Closed structure: fully enclosed design to reduce laser hazards and improve energy containment.
• All-round monitoring: dual-camera system for real-time process supervision.
• Autofocus laser head: automatic focal adjustment with support for multiple focal lengths to optimize cutting across thicknesses.
• Two exchangeable worktables: enables uninterrupted production and higher throughput.
• Compact / space saver design: overall machine dimensions permit transport in a 40HQ without a frame container (incl. backing board approx. 2270 mm × 8300 mm × 2340 mm).
• Intelligent CNC control (CypCut): features include intelligent diagnosis, multi-thread operation, multi-level pierce, laser energy control, adaptive edge finding, automatic corner acceleration/deceleration, flight cutting, worktable switching and mechanical accuracy compensation.

Technical Parameters
Model: SF3015H (C Generation)
Working area (mm): 3050 × 1530
Laser Power (kW): 1.5 - 12
Maximum movement velocity (m/min): 130
Maximum acceleration (G): 1.0
X/Y axis positioning accuracy (mm/m): ±0.05
X/Y axis repeated positioning accuracy (mm): ±0.02

Materials & Applications

• Materials: mild (carbon) steel, stainless steel, aluminium alloy, brass and other metal sheets.
• Applications: sheet metal fabrication, electronics, electrical appliances, automotive parts, precision components, shipbuilding & metallurgy parts, elevator components, household appliances, signage and metalcraft industries.

Characteristics / Technical specifications

• Compact footprint with increased effective working area (length +50 mm, width +30 mm vs previous design).
• Two exchange platforms to minimise downtime.
• Autofocus head for efficient cutting across multiple thicknesses.
• Dual-camera monitoring for operational safety and supervision.
• High dynamic performance: up to 130 m/min and 1.0 G acceleration.
• High precision positioning: ±0.05 mm/m; repeatability ±0.02 mm.
• Laser source options from 1.5 kW to 12 kW to match cutting requirements.
• Designed for container transport efficiency (fits a 40HQ without extra framing).
• CypCut CNC functions for advanced nesting, pierce control, energy management and automated routines.
