2D laser cutting machine SF1530N
fiber laserfor aluminumfor titanium

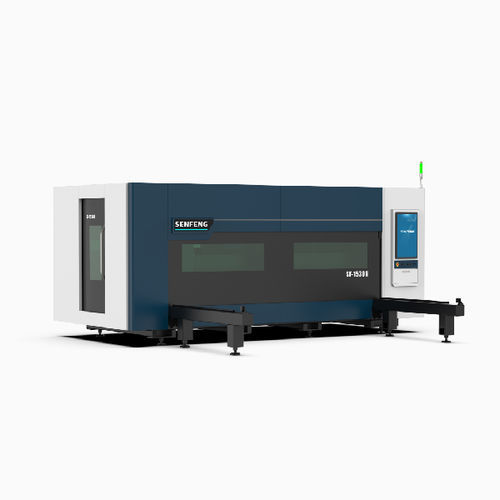

2D laser cutting machine - SF1530N - Jinan Senfeng Laser Technology Co. Ltd. - fiber laser / for aluminum / for titanium
2D laser cutting machine - SF1530N - Jinan Senfeng Laser Technology Co. Ltd. - fiber laser / for aluminum / for titanium
2D laser cutting machine - SF1530N - Jinan Senfeng Laser Technology Co. Ltd. - fiber laser / for aluminum / for titanium - image - 2
2D laser cutting machine - SF1530N - Jinan Senfeng Laser Technology Co. Ltd. - fiber laser / for aluminum / for titanium - image - 3
Add to favorites
Compare this product

Characteristics

Technology
fiber laser, 2D laser
Material
for aluminum, for stainless steel, for carbon steel, for brass, for titanium
Product handled
sheet metal
Control type
CNC
Associated function
perforation
Workpiece loading
manual loading
Configuration
compact
Other characteristics
automatic, CE, with servo-motor, fully-enclosed, FDA, with exchange table
X travel

1,500 mm
(59.06 in)

Y travel

3,000 mm
(118.11 in)

Cutting speed

1.667 m/s
(5.469 ft/s)

Laser power

Max.: 12,000 W

Min.: 1,500 W

Repeatability

0.05 mm
(0.002 in)

Overall length

5,005 mm
(197 in)

Maximum width

2,318 mm
(91 in)

Height

2,065 mm
(81 in)

Load capacity

1,100 kg
(2,425.1 lb)

Description

Product Overview
Fiber Laser Metal Sheet Cutting Machine SF1530N is a fully enclosed sheet-metal structure designed to meet local environmental protection requirements while saving floor space compared with conventional sheet cutting layouts.
  • Work area: 1500*3000mm
  • 2 Year limited warranty
  • Fully enclosed structure
  • 1-3kW available, suitable for medium and thin plates
  • Passed CE, ROHS, FDA (meets European and American standards)

Key Features
  • Small footprint suitable for small & smart shops; designed for compact installation and can be packed to reduce freight costs
  • Safety covered structure to reduce laser radiation and air pollution
  • Partitioned smoke removal system that locates the cutting position and exhausts smoke from different areas
  • Pull-out workbench for convenient loading and unloading
  • Full-featured CNC control system with:
    • Friendly operation interface with text display of error reports
    • Automatic selection of auxiliary gas type and gas pressure
    • Perforation control system
    • Direct pulse power modulation of lasers
    • Breakpoint return function
    • Movement obstacle avoidance and intelligent leapfrog judgment
    • Z-axis automatic adjustment and follow-up control to compensate for plate unevenness

Cutting Materials
Model: SF1530N
Stainless Steel: √
Carbon Steel: √
Aluminum: √
Brass: √
Galvanized Sheet: √
Titanium Alloy: √
Electrolytic Sheet: √

Technical Specifications
  • Model: SF1530N
  • Laser Power: 1.5kW - 12kW
  • Work Area: 1500 × 3000 mm
  • Positioning Accuracy: ±0.05 mm
  • Max Speed: 100 m/min
  • Max Load of Platforms: 1100 kg
  • Outline Size: 5005 × 2318 × 2065 mm
