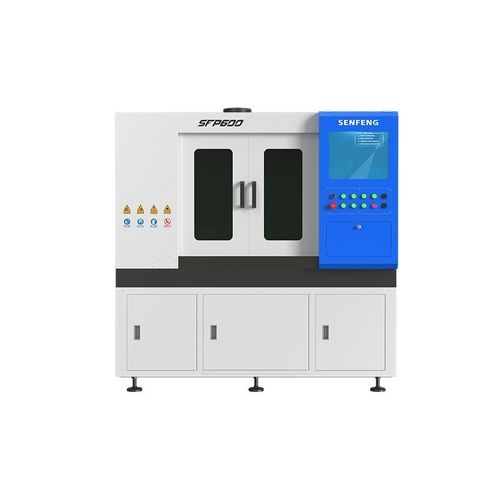

Fiber laser cutting machine SFP600for aluminumfor titaniumfor stainless steel
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for aluminum, for stainless steel, for carbon steel, for copper, for brass, for titanium
- Product handled
- sheet metal
- Control type
- PLC-controlled
- Applications
- for industrial applications, for metal fabrication
- Other characteristics
- high-precision
- X travel
600 mm
(23.62 in)- Y travel
600 mm
(23.62 in)- Z travel
100 mm
(4 in)- Maximum cutting height
5 mm
(0.2 in)- Minimum cutting height
0.2 mm
(0.01 in)- Laser power
1,500 W, 3,000 W
- Repeatability
0.005 mm, 0.02 mm
(0.0002 in, 0.0008 in)- Overall length
1,430 mm
(56 in)- Maximum width
1,800 mm
(71 in)- Height
1,800 mm
(71 in)- Weight
1,400 kg
(3,086.47 lb)
Description
Product brief
Senfeng SFP600 fiber laser cutting machine designed for precision cutting of thin metal sheets with a processing format of 600 × 600 mm and a cutting thickness range of 0.2–5 mm.
Features
Cutting materials
Application industry
Suitable for manufacturing, metal fabrication and precision component production requiring accurate cutting of thin metal sheets.
Technical specifications
Senfeng SFP600 fiber laser cutting machine designed for precision cutting of thin metal sheets with a processing format of 600 × 600 mm and a cutting thickness range of 0.2–5 mm.
Features
- High-precision fiber laser head optimized for thin-sheet cutting.
- Open motion control platform integrating motion control, PLC and HMI for flexible automation.
- High-strength marble base to stabilize the cutting process and maintain accuracy.
Cutting materials
- Carbon steel
- Stainless steel
- Aluminum alloy
- Brass
- Copper
- Galvanized sheet
- Silicon steel plate
- Electrolytic plate
- Titanium alloy
- Manganese alloy
Application industry
Suitable for manufacturing, metal fabrication and precision component production requiring accurate cutting of thin metal sheets.
Technical specifications
- Model: SFP600
- Laser power: 1.5 kW – 3 kW
- Processing format (L × W): 600 × 600 mm
- X-axis travel: 600 mm
- Y-axis travel: 600 mm
- Z-axis travel: 100 mm
- X/Y axis positioning accuracy: ±0.02 mm
- Repeated positioning accuracy (X/Y): ±0.005 mm
- Designed cutting thickness range: 0.2 mm – 5 mm
- Total weight: approx. 1.4 t
- Overall size (W × D × H): 1800 × 1430 × 1800 mm
