Laser cutting machine 3015N

for metalsheet metalCNC

Overview

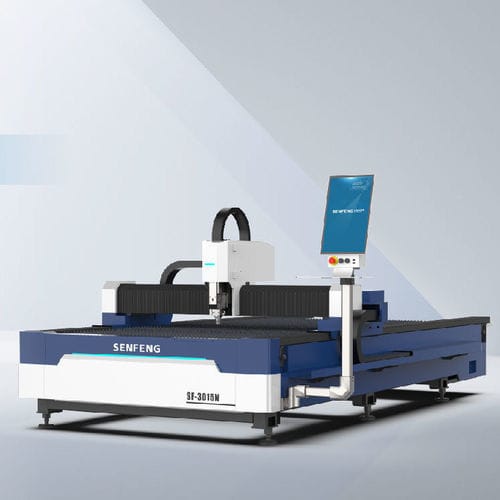

Open-style laser cutting machine with a single modular platform and compact footprint (~12 m²). Designed for easy loading and unloading, simplified transport and rapid on-site assembly, suitable for facilities with limited floor space.

Highlights

• Open-style compact design for straightforward material loading and unloading.
• Bulk transport: up to 8 sets of model 3015N per 40HQ container to reduce freight; units assemble on site via quick-insert connectors for fast deployment.

Workshop & Environment
Double ventilation ducts accelerate internal airflow, limit smoke and dust accumulation, and improve the production environment for open installations.

Technical R&D & Components

• Intelligent CNC control system for fast response and machine interconnectivity.
• Laser generator with high electro-optical conversion efficiency.
• Autofocus laser cutting head with enhanced safety features.

Structure & Maintenance

• Semi-hollow bed structure to reduce thermal deformation from laser heat exposure.
• Single modular platform simplifies maintenance, repair and spare-part replacement.

Application Industry
Optimized for thin-sheet cutting up to 20 mm. Recommended for household appliances, kitchenware, sanitaryware, chassis and cabinets, signage, elevator components and other thin-sheet fabrication tasks.

Technical Parameters
Model: 3015N
Working area (mm): 3050 × 1530
Laser power (kW): 1.5 / 3 / 4 / 6
Maximum speed (m/min): 100
X/Y axis positioning accuracy (mm): ±0.05
X/Y axis repeated positioning accuracy (mm): ±0.02
Overall dimensions (L×W×H, mm): 4360 × 2760 × 1800

Specifications

• Model: 3015N
• Working area: 3050 × 1530 mm
• Laser power options: 1.5 kW, 3 kW, 4 kW, 6 kW
• Maximum cutting speed: 100 m/min
• X/Y axis positioning accuracy: ±0.05 mm
• X/Y axis repeated positioning accuracy: ±0.02 mm
• Overall dimensions: 4360 × 2760 × 1800 mm
