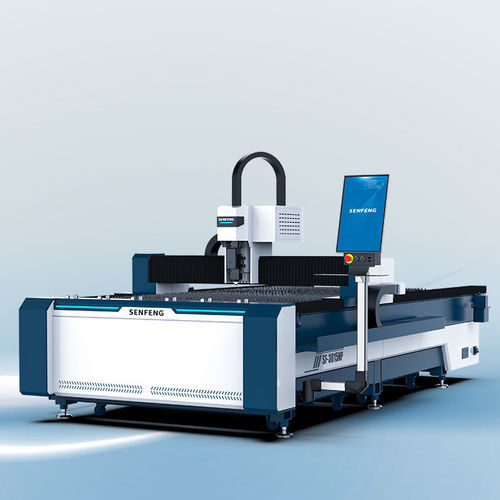

Laser cutting machine 3015NP

for aluminumfor stainless steelfor brass

Overview
The machine adopts an intelligent bus-based CNC system with built-in cutting functions such as disc centering, cutting-plane line, smart obstacle avoidance and automatic leapfrog. It is designed for medium-to-thin sheet cutting to deliver fast, accurate and efficient results.

Materials & Cutting Thickness

• Stainless steel: 1-30 mm
• Carbon steel: 1-30 mm
• Aluminium alloy: 1-25 mm
• Brass: 1-16 mm

Structure & Design

• Open-style single-platform structure enabling loading/unloading from left, right and rear using side-mounted eye wheels.
• Compact integrated layout including main body, electrical cabinet, control system, air compressor, laser generator and water chiller to optimize workshop space.
• Single-platform design reduces overall footprint (approx. 12 m²) with built-in laser generator.
• Integrated distribution cabinet separates strong and weak currents to reduce electrical interference.
• Thermally treated welded raised bed to relieve internal stress and improve rigidity and service life.
• Modular tool bits secured with screws for easy removal and replacement.
• Fire-proof bricks protect the bed from high temperatures; detachable receiving hopper simplifies replacement.
• Dual ventilation ducts in the bed accelerate airflow; combined suction-and-blow mode with inlet and outlet ensures efficient smoke extraction.

Technical Parameters
Model: 3015NP
Working Area (mm): 3050*1530
Laser Power (kW): 3-12
Max No-load Speed (m/min): 120
X/Y Axis positioning accuracy (mm): ± 0.05
X/Y Axis repeated positioning accuracy (mm): ± 0.02
Overall Dimensions (L*W*H, mm): 4360*2760*1800

Features / Technical specifications

• Intelligent bus-based CNC control with built-in cutting functions (disc centering, cutting-plane line, obstacle avoidance, automatic leapfrog).
• Capable of cutting carbon steel, stainless steel, aluminium alloy and brass within the specified thickness ranges.
• Open-style single-platform layout for compact footprint and straightforward material handling.
• Thermally treated welded bed for enhanced rigidity and longevity.
• Modular replaceable tool bits and a detachable receiving hopper for simplified maintenance.
• Efficient smoke extraction via dual bed ventilation ducts and combined suction-and-blow mode.
• Precise motion performance: max speed 120 m/min; positioning accuracy ±0.05 mm; repeatability ±0.02 mm.
