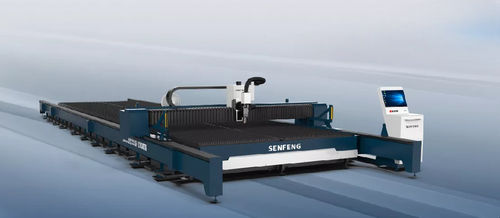

Laser cutting machine SF series

for steelsheet metalsheet

Product Overview
The metal plate bevel laser cutting machine enables planar bevel cutting up to 45°, exceeding conventional 0° straight cuts. It performs V, X, Y and other bevel geometries in a single pass, combining cutting and forming to deliver parts with high dimensional accuracy and superior surface quality, while improving productivity and saving material.

Main Features

• German-imported high-power cutting head enabling bevel cutting up to 45° on the plane.
• One-pass formation of V, X, Y and other bevel types (no additional milling required).
• High dimensional accuracy and excellent surface finish of cut parts.
• Laser power selectable from 6 kW to 60 kW; stable cutting thickness >20 mm and limit cutting thickness >70 mm (material and configuration dependent).
• Optional extra-large format: processing width up to 4000 mm; length configurable to customer requirements.
• Standard safety light curtain to stop the machine immediately if an operator approaches the beam, ensuring personnel safety.
• 360° enclosed surround smoke exhaust (zonal dust extraction) to protect operators and optical components and extend service life.
• Typical applications: construction machinery, shipbuilding, tower/steel structures and other heavy plate/bevel applications.
• Available models: SF12030TX, SF14040TX, SF24040TX, SF30040TX.

Technical Parameters
Model | SF12030TX | SF14040TX | SF24040TX | SF30040TX
Working Area (mm) | 12000*3000 | 14000*4000 | 24000*4000 | 30000*4000
Laser Power (kW) | 6~60 | 6~60 | 6~60 | 6~60
X/Y Axis positioning accuracy (mm) | ±0.1/10000 | ±0.1/10000 | ±0.1/10000 | ±0.1/10000
X/Y Axis repeated positioning accuracy (mm) | ±0.05 | ±0.05 | ±0.05 | ±0.05
Maximum Speed (m/min) | 80 | 80 | 80 | 80
Total Weight (kg) | 14000 | 21900 | 37500 | 47000
Overall Dimensions (L*W*H, mm) | 15449*4609*1975 | 17940*5609*1975 | 29861*5609*1975 | 36956*5609*1975
