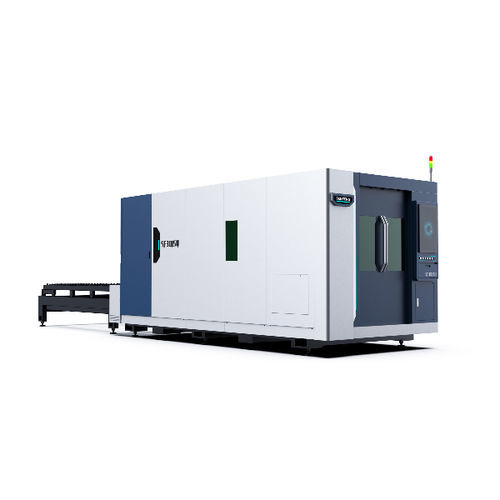

Fiber laser cutting machine SF3015H

for aluminumfor stainless steelfor brass

Overview
High-power fiber laser cutter SF3015H4 is designed for laser powers from 6 kW to 30 kW. The unit features a full-protection cover to shield operators from laser radiation and to limit environmental emissions. It is fitted with auto-exchangeable platforms to reduce loading time and improve processing throughput; a full platform exchange can be completed in approximately 20 seconds.

Applications

• Materials: mild steel, stainless steel, aluminum alloy, brass.
• Industries: automotive, sheet metal fabrication, furniture manufacturing, advertising/display production.

Main features

• Heavy-load thermally isolated hollow bed: welded from high-quality steel plates and pipes; post-weld stress relief annealing, secondary aging and precision machining on large gantry milling machines ensure structural stability, impact resistance and long-term dimensional stability.
• Intelligent spiral vacuum dust extraction: time-sharing system with automatic air outlet switching and sectional exhaust; combined with back-shaped sealing at the base to achieve smokeless cutting. Machines with 8 kW or higher include graphite and copper protection.
• Aviation-grade high-strength aluminum alloy beams: lightweight with low inertia and internal triangular reinforcement for rigidity and shock resistance; rough machining after annealing eliminates internal stress and fine machining after vibration aging increases strength and stability.
• Full-protection cover for safer operation and reduced environmental impact.
• Auto-exchangeable platforms to minimize loading/unloading time and increase throughput.

Technical parameters / Specifications

• Model: SF3015H / SF4020H / SF6020H / SF6025H / SF8025H / SF12025H
• Working area (mm): 3050 × 1530 / 4050 × 2030 / 6050 × 2030 / 6050 × 2530 / 8050 × 2530 / 12050 × 2530
• Laser power (kW): 6 / 8 / 12 / 15 / 20 / 30
• Maximum speed (m/min): 20
• Maximum acceleration (G): 2.0
• X/Y axis positioning accuracy (mm): ±0.05
• X/Y axis repeated positioning accuracy (mm): ±0.02
