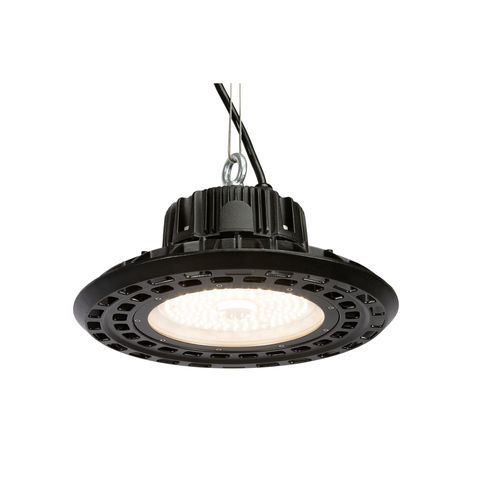

High bay light JNFB8-120S-5000-A1-IP65-DIM

LEDHIDfor storage hall

Description
Industrial flat LED high-bay luminaire delivering 120 W of cool white light (5000 K). Designed to replace 300 W metal halide/HID/HPS fixtures while providing controlled, symmetric light distribution via an integrated 72°x72° reflector. Built for warehouses, production halls, logistics centers and workshops where IP65 dust/water protection, IK08 impact resistance and long operational life are required. Equipped with Philips Lumileds LEDs and Meanwell ELG-150 driver; dimmable and including 10 kV surge protection.

Features

• Original Philips Lumileds LEDs for stable lumen output
• Meanwell ELG-150 dimmable LED driver
• IP65 rated for dust and water protection
• Integrated symmetric 72°x72° reflector for controlled distribution
• Replaces 300 W metal halide/HID/HPS luminaires
• Die-cast aluminum housing, black finish
• Surge protection: 10 kV
• Power factor > 0.95

Product Specifications
Product SKU: JNFB8-120S-5000-A1-IP65-DIM
Power Consumption: 120 W
Input Voltage: 100–305 V AC
Beam Angle (°): 72° x 72° (symmetric)
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Total Luminous Flux: 21,800 lm
Colour Temperature: 5000 K (cool white)
IK Impact Rating: IK08
Dimming Capability: Dimmable (with compatible control)
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast aluminum
LED Driver Brand: Meanwell ELG-150
Surge Protection: 10 kV
Input Cable Type: H07RN-F 3G1.0
Fixture Height: 166 mm
Fixture Length: 340 mm
Fixture Width: 340 mm
Number of Lamps: 1
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Operating Temperature Range: -20°C to 45°C
Operating Humidity: 10%–90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 340 x 340 x 166 mm
Net Weight (kg): 3.6 kg
Export Carton Dimensions (mm): 360 x 360 x 205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 4.2 kg

Technical specifications

• Power: 120 W
• Lumens: 21,800 lm
• Correlated Colour Temperature: 5000 K (cool white)
• LEDs: Philips Lumileds
• Driver: Meanwell ELG-150 (dimmable)
• Voltage Range: 100–305 V AC
• IP Rating: IP65
• IK Rating: IK08
• Beam Angle: 72° x 72° (symmetric)
• Housing: Die-cast aluminum, black
• Surge Protection: 10 kV
• Power Factor: >0.95
• Operating Temp: -20°C to 45°C
• Rated Lifespan: 50,000 hours
• Fixture dimensions: 340 x 340 x 166 mm
• Net weight: 3.6 kg
