High bay light JNFB8-120S-5700-A1-IP65-ND

LEDHIDmetal-halide

Product short description

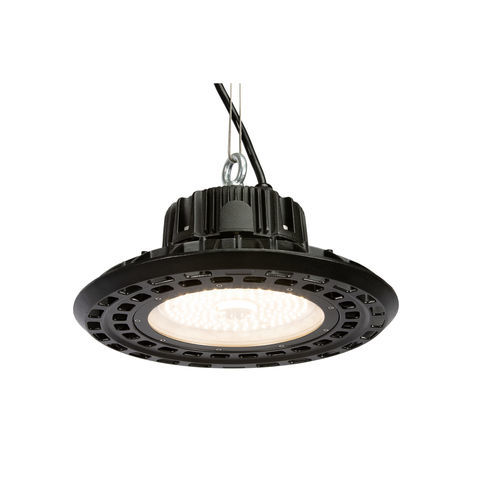

120 W LED flat high bay luminaire with Philips Lumileds LEDs and Meanwell ELG-150 driver. IP65 rated enclosure, non-dimmable, designed to replace 300 W metal halide/HID/HPS fixtures. Integrated 72°×72° symmetric reflector.

Features

• Integrated 72°×72° reflector
• Original Philips Lumileds LEDs
• Meanwell ELG-150 LED driver
• IP65 rated enclosure
• Non-dimmable
• Replaces 300 W metal halide/HID/HPS

Product Specifications (table)
Product SKU: JNFB8-120S-5700-A1-IP65-ND
Power Consumption: 120 W
Input Voltage: 100-305 V AC
Beam Angle (°): 72°×72°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 21,800 lm
Color Temperature (K): 5700 K (cool white)
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
LED Driver Brand: Meanwell ELG-150
Surge Protection: 10 kV
Input Voltage Range: 100~305 V AC
Input Cable Type: H07RN-F 3G1.0
Fixture Height (mm): 166 mm
Fixture Length (mm): 340 mm
Fixture Width (mm): 340 mm
Number of Lamps: 1 lamp(s)
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%–90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 340×340×166 mm
Net Weight (kg): 3.6 kg
Export Carton Dimensions (mm): 360×360×205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 4.2 kg

Technical specifications

• SKU: JNFB8-120S-5700-A1-IP65-ND
• Power: 120 W
• Voltage: 100-305 V AC
• Driver: Meanwell ELG-150
• LEDs: Philips Lumileds
• Lumens: 21,800 lm
• Color Temperature: 5700 K (cool white)
• CRI: >70
• Beam Angle: 72°×72° (symmetric)
• IP Rating: IP65
• IK Rating: IK08
• Surge Protection: 10 kV
• Power Factor: >0.95
• Housing: Die-cast Aluminum, Black
• Fixture Size (mm): 340×340×166
• Net Weight: 3.6 kg
• Operating Temp: -20°C to 45°C
• Working Humidity: 10%–90% RH
• Rated Life: 50,000 hours
