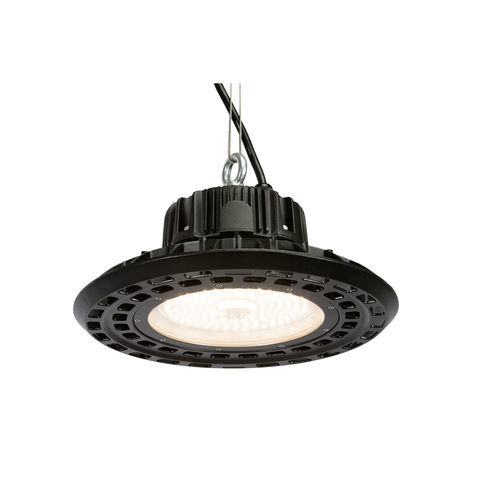

High bay light JNFB8-120S-3000-A1-IP65-ND

LEDHIDfor storage hall

Product overview
120 W LED flat high bay luminaire equipped with Philips Lumileds LEDs and Meanwell ELG-150 driver. IP65-rated die-cast aluminum housing, non-dimmable. Integrated symmetric 72°x72° reflector designed to replace 300 W metal halide/HID/HPS fixtures for industrial and commercial high-bay applications.

Key features

• Original Philips Lumileds LEDs
• Meanwell ELG-150 LED driver
• IP65 rated housing
• Non-dimmable
• Integrated symmetric 72°x72° reflector
• Replacement for 300 W metal halide / HID / HPS
• Die-cast aluminum housing, black finish
• Surge protection 10 kV

Product specifications

• Product SKU: JNFB8-120S-3000-A1-IP65-ND
• Power Consumption: 120 W
• Input Voltage: 100–305 V AC
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell ELG-150
• Total Luminous Flux: 21,800 lm
• Color Temperature: 3000 K
• Color Rendering Index (CRI): >70
• Beam Angle: 72° x 72° (symmetric)
• Beam Angle Format: Symmetric
• IP Rating: IP65
• IK Rating: IK08
• Dimming Capability: Non-dimmable
• Power Factor: >0.95
• Surge Protection: 10 kV
• Input Cable Type: H07RN-F 3G1.0
• Working Temperature: -20°C to 45°C
• Working Humidity: 10% - 90% RH
• Lifespan: 50,000 hours
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Fixture Dimensions (L x W x H): 340 x 340 x 166 mm
• Net Weight: 3.6 kg
• Number of Lamps: 1

Packaging & Shipping

• Product Dimensions (mm): 340 x 340 x 166
• Net Weight (kg): 3.6
• Export Carton Dimensions (mm): 360 x 360 x 205
• Products per Carton: 1
• Export Carton Gross Weight (kg): 4.2
