High bay light JNFB8-120S-3000-A1-IP65-DIM

LEDIP65high-power

Short description

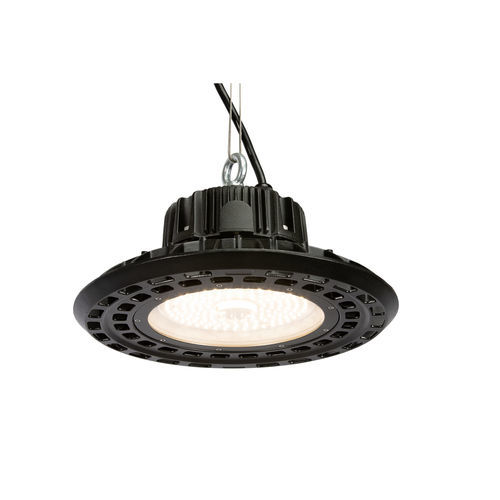

120 W flat LED high bay luminaire with Philips Lumileds chips and Meanwell ELG-150 driver, IP65-rated for dust and water protection. Dimmable, designed to replace 300 W metal halide/HID/HPS fittings. Integrated 72°×72° symmetric reflector for uniform beam distribution.

Features

• Original Philips Lumileds LEDs
• Meanwell ELG-150 LED driver
• IP65 enclosure for dust and water protection
• 72°×72° integrated reflector for symmetric beam distribution
• Dimmable
• High lumen output suitable to replace 300 W metal halide/HID/HPS
• Die-cast aluminum housing, black finish
• High surge protection (10 kV) and power factor >0.95

Product Specifications
Product SKU: JNFB8-120S-3000-A1-IP65-DIM
Power Consumption: 120 W
Input Voltage: 100-305V (100~305V AC)
Beam Angle (°): 72°×72°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 21800 lm
Color Temperature (K): 3000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
LED Driver Brand: Meanwell ELG-150
Surge Protection: 10kV
Input Cable Type: H07RN-F 3G1.0
Fixture Height (mm): 166 mm
Fixture Length (mm): 340 mm
Fixture Width (mm): 340 mm
Number of Lamps: 1 lamp(s)
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 340×340×166 mm
Net Weight (kg): 3.6 kg
Export Carton Dimensions (mm): 360×360×205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 4.2 kg

Specification Details
120 W flat LED high bay luminaire with Philips Lumileds and Meanwell driver(s), IP65, dimmable, with integrated 72°×72° reflector. Suitable replacement for 300 W metal halide/HID/HPS fixtures.

Technical specifications

• SKU: JNFB8-120S-3000-A1-IP65-DIM
• Power: 120 W
• Input Voltage: 100-305 V
• Beam Angle: 72°×72° (symmetric)
• IP Rating: IP65
• CRI: >70
• LED Type: Philips Lumileds
• Lumens: 21800 lm
• Colour Temperature: 3000 K
• IK Rating: IK08
• Dimming: Dimmable
• Housing Colour: Black
• Power Factor: >0.95
• Input Frequency: 50/60 Hz
• Housing Material: Die-cast Aluminum
• LED Driver: Meanwell ELG-150
• Surge Protection: 10kV
• Input Cable: H07RN-F 3G1.0
• Fixture Size (L×W×H): 340×340×166 mm
• Net Weight: 3.6 kg
• Carton Size: 360×360×205 mm (1 unit per carton, gross weight 4.2 kg)
• Operating Temp: -20°C to 45°C
• Operating Humidity: 10%–90% RH
• Rated Life: 50,000 hours
