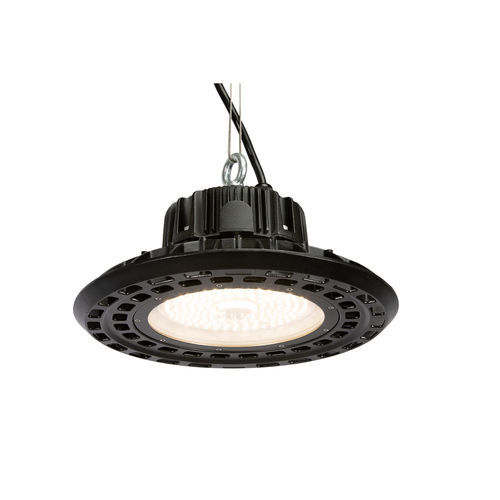

High bay light JNFB8-120S-4000-A1-IP65-DIM

LEDHIDIP65

Short description
120 W flat LED high bay luminaire equipped with Philips Lumileds LEDs and a Meanwell ELG-150 driver, IP65 rated. Dimmable. Replaces 300 W metal halide/HID/HPS installations. Integrated 72°x72° symmetric reflector.

Features

• Original Philips Lumileds LEDs
• Meanwell ELG-150 LED driver
• IP65 dust and water protection
• Dimmable
• Integrated 72°x72° symmetric reflector
• Equivalent to 300 W metal halide/HID/HPS
• Total luminous flux: 21,800 lm
• Power factor >0.95 and 10 kV surge protection
• Die-cast aluminum housing, black, IK08 impact rating
• Wide input voltage 100–305 V AC, 50/60 Hz
• Operating temperature -20°C to 45°C; working humidity 10%–90% RH
• Lifespan: 50,000 hours

Product specifications (table)
Product SKU: JNFB8-120S-4000-A1-IP65-DIM
Power Consumption (W): 120
Input Voltage: 100-305V AC
Beam Angle: 72°x72° (symmetric)
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Total Luminous Flux (lm): 21,800
Color Temperature (K): 4000
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
LED Driver Brand: Meanwell ELG-150
Surge Protection: 10 kV
Input Cable Type: H07RN-F 3G1.0
Fixture Height (mm): 166
Fixture Length x Width (mm): 340 x 340
Number of Lamps: 1
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%–90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping (table)
Product Dimensions (mm): 340x340x166
Net Weight (kg): 3.6
Export Carton Dimensions (mm): 360x360x205
Products per Carton: 1
Export Carton Gross Weight (kg): 4.2

Technical specifications

• Power: 120 W
• Luminous flux: 21,800 lm
• Colour temperature: 4000 K (natural white)
• Beam angle: 72° x 72° (symmetric)
• CRI: >70
• IP rating: IP65
• IK rating: IK08
• Driver: Meanwell ELG-150
• LED: Philips Lumileds
• Input voltage: 100-305V AC, 50/60 Hz
• Power factor: >0.95
• Surge protection: 10 kV
• Housing: Die-cast aluminum, black
• Dimensions (mm): 340 x 340 x 166
• Net weight: 3.6 kg
• Operating temperature: -20°C to 45°C
• Working humidity: 10%–90% RH
• Lifespan: 50,000 hours
