High bay light JNFB8-120S-6500-A1-IP65-ND

LEDHIDmetal-halide

Product description

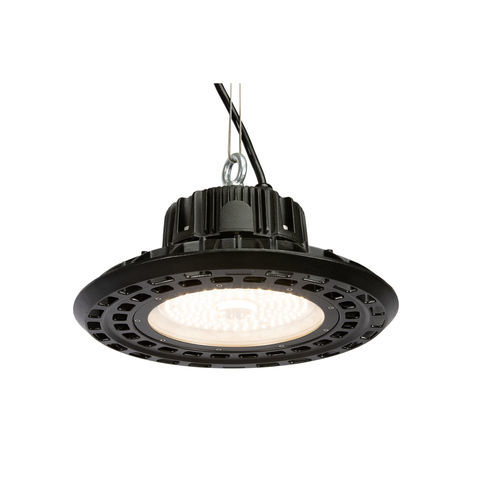

120 W flat LED high bay with integrated 72×72° symmetric reflector. Equipped with Philips Lumileds LEDs and Meanwell ELG-150 driver, IP65-rated housing and IK08 impact resistance. Non-dimmable. Designed to replace 300 W metal halide/HID/HPS fittings in warehouses, production halls and logistics facilities. Rated lifetime: 50,000 hours; luminous flux: 21,800 lm at 6500 K.

Features

• Integrated 72°x72° symmetric reflector
• Philips Lumileds LED chips
• Meanwell ELG-150 LED driver (10 kV surge protection)
• IP65 rated die-cast aluminium housing
• Non-dimmable
• High lumen output: 21,800 lm
• Color temperature: 6500 K (cool white)
• Power factor >0.95
• IK08 impact rating

Product specifications
Product SKU: JNFB8-120S-6500-A1-IP65-ND
Power Consumption: 120 W
Input Voltage: 100-305 V AC
Beam Angle: 72°x72° (symmetric)
IP Rating: IP65
CRI: >70
LED Type: Philips Lumileds
Total Luminous Flux: 21,800 lm
Color Temperature: 6500 K
LED Driver: Meanwell ELG-150
Power Factor: >0.95
Surge Protection: 10 kV
Input Frequency: 50/60 Hz
Cable Type: H07RN-F 3G1.0
Housing Material: Die-cast Aluminum
Fixture Dimensions (L×W×H): 340×340×166 mm
Net Weight: 3.6 kg
Operating Temperature: -20°C to 45°C
Operating Humidity: 10%–90% RH
Lifespan: 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 340×340×166 mm
Net Weight (kg): 3.6 kg
Export Carton Dimensions (mm): 360×360×205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 4.2 kg

Technical specifications

• Beam angle format: Symmetric (72°×72°)
• Replacement for 300 W metal halide/HID/HPS
• Working temperature: -20°C ~ 45°C
• Working humidity: 10%–90% RH
• Lifespan: 50,000 hours
