High bay light JNFB8-120S-6500-A1-IP65-DIM

LEDHIDmetal-halide

Short description

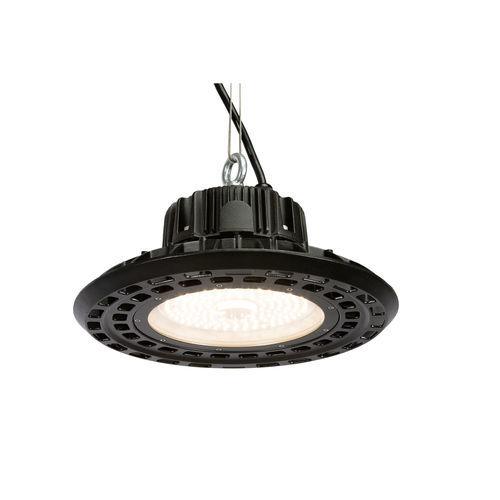

120 Watt flat LED high-bay luminaire designed for industrial and commercial high-ceiling spaces. Fitted with Philips Lumileds LEDs and a Meanwell ELG-150 driver. IP65 rated for dust and water protection, dimmable and equipped with an integrated symmetric 72°×72° reflector. Replaces 300 W metal halide/HID/HPS fixtures and includes 10 kV surge protection.

Key features

• Philips Lumileds LEDs
• Meanwell ELG-150 LED driver
• IP65 dust and water protection
• Dimmable
• Integrated symmetric 72°×72° reflector
• Replacement for 300 W metal halide / HID / HPS
• Surge protection 10 kV

Product specifications (table)
Product SKU: JNFB8-120S-6500-A1-IP65-DIM
Power Consumption: 120 W
Input Voltage: 100-305V (100~305V AC)
Beam Angle (°): 72°x72°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 21800 lm
Colour Temperature (K): 6500 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
LED Driver Brand: Meanwell ELG-150
Surge Protection: 10kV
Input Cable Type: H07RN-F 3G1.0
Fixture Height (mm): 166 mm
Fixture Length (mm): 340 mm
Fixture Width (mm): 340 mm
Number of Lamps: 1 lamp(s)
Beam Angle Range: 100+
Beam Angle Format: Symmetric
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping (table)
Product Dimensions (mm): 340 x 340 x 166 mm
Net Weight (kg): 3.6 kg
Export Carton Dimensions (mm): 360 x 360 x 205 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 4.2 kg

Technical specifications

• Power: 120 W
• Voltage: 100-305 V AC
• Lumens: 21,800 lm
• Colour Temperature: 6500 K (cool white)
• Beam angle: 72° x 72° (symmetric)
• IP Rating: IP65
• IK Rating: IK08
• CRI: >70
• Driver: Meanwell ELG-150
• LEDs: Philips Lumileds
• Surge protection: 10 kV
• Housing: Die-cast aluminum, black
• Dimensions (L×W×H): 340×340×166 mm
• Net weight: 3.6 kg
• Operating temperature: -20°C to 45°C
• Relative humidity: 10%–90% RH
• Expected life: 50,000 hours
