High bay light JNFB8-120S-5000-A1-IP65-ND

LEDfor storage hallfor shop

Description

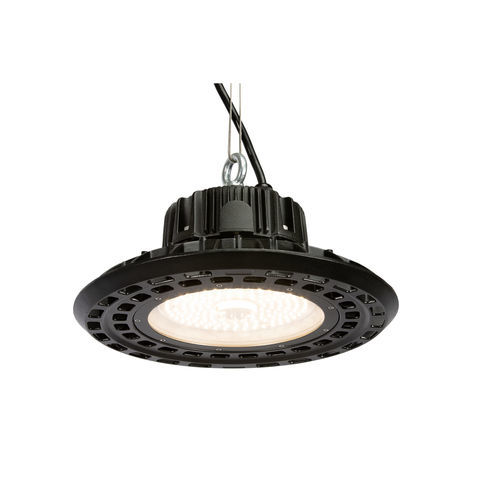

120 W LED flat high bay luminaire with Philips Lumileds LEDs and Meanwell ELG-150 driver. IP65 and IK08 rated, non-dimmable, with integrated symmetric 72°×72° reflector. Designed to replace 300 W metal halide/HID/HPS fittings in industrial and commercial high-bay applications.

SKU
JNFB8-120S-5000-A1-IP65-ND

Key features

• Power: 120 W
• Color temperature: 5000 K (cool white)
• LED type: Philips Lumileds
• LED driver: Meanwell ELG-150
• Integrated symmetric reflector: 72°×72°
• Ingress protection: IP65
• Impact rating: IK08
• Non-dimmable
• Replaces 300 W metal halide/HID/HPS
• Surge protection: 10 kV
• Power factor > 0.95
• Rated lifespan: 50,000 hours

Technical specifications

• Product SKU: JNFB8-120S-5000-A1-IP65-ND
• Power consumption: 120 W
• Input voltage: 100–305 V AC
• Input frequency: 50/60 Hz
• Beam angle: 72°×72° (symmetric)
• Total luminous flux: 21,800 lm
• CRI: >70
• Color temperature: 5000 K
• LED type: Philips Lumileds
• LED driver brand: Meanwell ELG-150
• Surge protection: 10 kV
• Power factor: >0.95
• Working temperature: -20°C to 45°C
• Working humidity: 10%–90% RH
• Housing material: Die-cast aluminum
• Housing color: Black
• IK rating: IK08
• IP rating: IP65
• Fixture dimensions (L×W×H): 340×340×166 mm
• Net weight: 3.6 kg
• Number of lamps: 1
• Input cable: H07RN-F 3G1.0

Packaging & Shipping

• Product dimensions (mm): 340×340×166
• Net weight (kg): 3.6
• Export carton dimensions (mm): 360×360×205
• Products per carton: 1
• Export carton gross weight (kg): 4.2

Applications

• Industrial warehouses and production halls
• Logistics and distribution centers
• Workshops and assembly areas
• Retail high-bay environments
